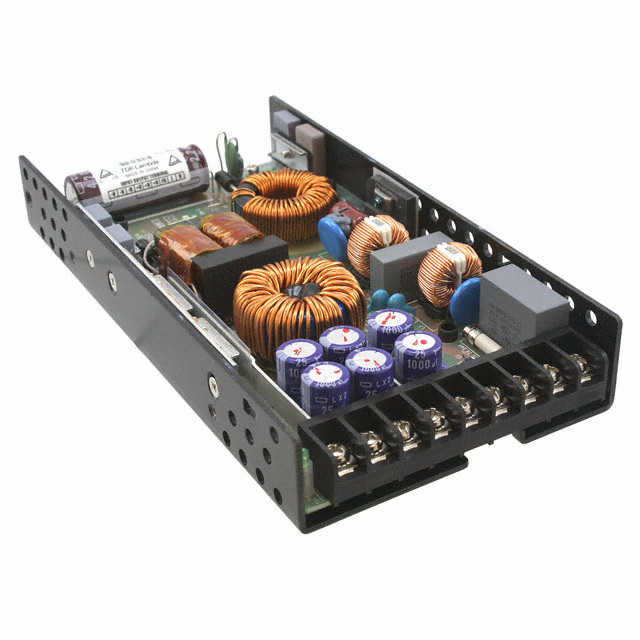

CUS250LD-3 - CUS250LD Series

CUS250LD-3

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 3.3 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetUser Manual EN+2
CUS250LD-3 - CUS250LD Series

CUS250LD-3

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 3.3 V

Deep-Dive with AI

DocumentsDatasheetUser Manual EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationCUS250LD-3
ApplicationsITE (Commercial)
Approval AgencyCE
Current - Output 150 A
Efficiency90 %
FeaturesUniversal Input, Adjustable Output, DC Input Capable
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Power (Watts)250 W
Size / Dimension [x]7.8 in
Size / Dimension [x]198 mm
Size / Dimension [y]102 mm
Size / Dimension [y]4 "
Size / Dimension [z]30 mm
Size / Dimension [z]1.18 in
TypeOpen Frame, Conformal Coated
Voltage - Input [Max]265 VAC
Voltage - Input [Min]85 VAC
Voltage - Isolation3000 V
Voltage - Output 13.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 156.25
NewarkEach 1$ 156.25
10$ 140.97
25$ 127.94
50$ 110.50

Description

General part information

CUS250LD Series

Switching Power Supplies 252W 12V 21A
