Q-63064000K006i

Active

Amphenol Custom Cable

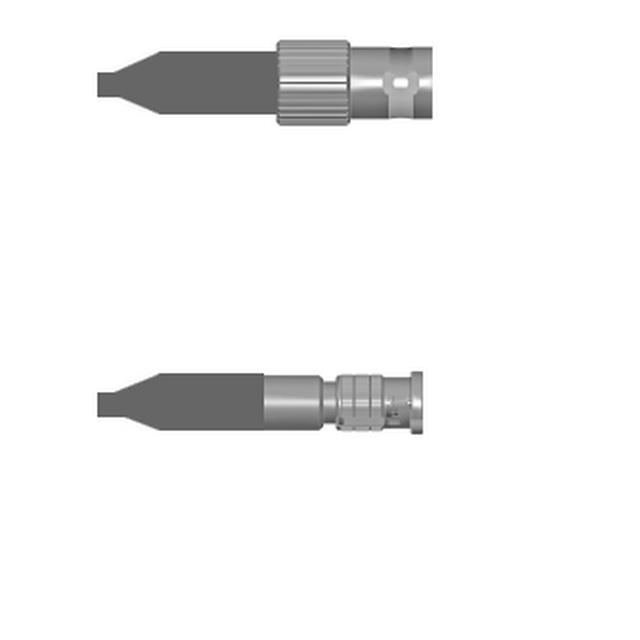

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-63064000K006i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-63064000K006i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Belden 4855R
Color	Black
Features	Shielded
Frequency - Max [Max]	12 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-630640 Series

Part	Color	1st Connector	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	Features	1st Connector Mounting Type	2nd Connector	Style	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-63064000K003M	Black	BNC Jack	3 m	118.1 in	9.8 '	12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K0.5M	Black	BNC Jack	50 cm	19.69 "		12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K2.5M	Black	BNC Jack	2.5 m	98.4 in	8.2 '	12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K009i	Black	BNC Jack	228.6 mm	9 "		12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K018i	Black	BNC Jack				12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R	457.2 mm	457.2 mm
Amphenol Custom Cable Q-63064000K072i	Black	BNC Jack	1.8 m	72 in	6 ft	12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K.75M	Black	BNC Jack	750 mm	29.53 "		12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K.25M	Black	BNC Jack				12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R		250 mm	9.843 "
Amphenol Custom Cable Q-63064000K002M	Black	BNC Jack	2 m	78.7 in	6.6 ft	12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R
Amphenol Custom Cable Q-63064000K006i	Black	BNC Jack	152.4 mm	6 in		12 GHz	Male	Female	75 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	HD-BNC Plug	BNC to HD-BNC	Belden 4855R

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 129.54
		25	$ 127.02
		50	$ 124.49
		100	$ 121.97
		250	$ 119.44

Description

General part information

Q-630640 Series

Cable Assembly Coaxial BNC to HD-BNC Belden 4855R 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
