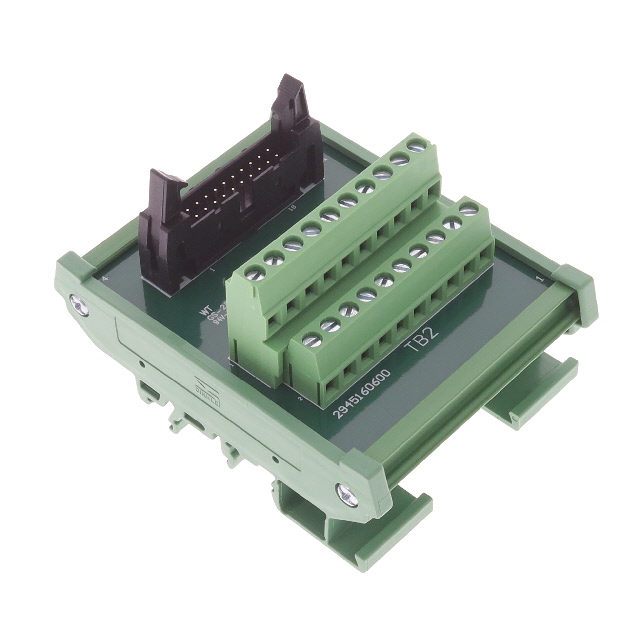

UB-10-ID16A

Obsolete

Delta Electronics/Industrial Automation

I/O TERMINAL MODULE - 16 DIGITAL

Search across all available documentation for this part.

Obsolete

Delta Electronics/Industrial Automation

I/O TERMINAL MODULE - 16 DIGITAL

Technical Specifications

Parameters and characteristics for this part

Specification	UB-10-ID16A

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Length	87 mm
Length	3.425 in
Positions / Poles	16
Process Side Connection	Terminal Blocks - Screw Connection
Width [y]	67 mm
Width [y]	2.638 in
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	22 AWG

Part	Control Side Connection [custom]	Control Side Connection [custom]	Width [y]	Width [y]	Control Side Cable Retainer	Length	Length	Process Side Connection	Positions / Poles	Wire Gauge [Max]	Wire Gauge [Min]	Voltage - Rated
Delta Electronics/Industrial Automation UB-10-ID16A	Male	Rectangular	67 mm	2.638 in	Latches	87 mm	3.425 in	Terminal Blocks - Screw Connection	16	24 AWG	22 AWG
Delta Electronics/Industrial Automation UB-10-OT32A	Male	Rectangular	87 mm	3.425 in	Latches	113 mm	4.449 in	Terminal Blocks - Screw Connection	32			24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 22-24 AWG
