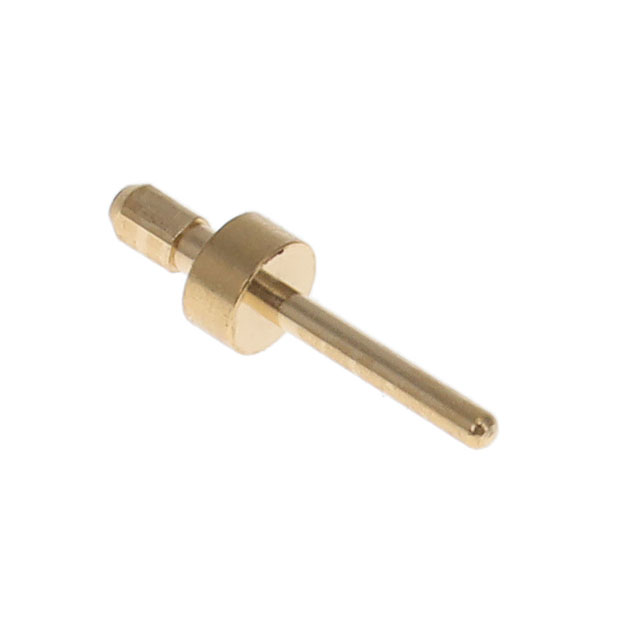

9000-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .018DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
9000-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9000-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.42 mm |
| Flange Diameter [diameter] | 0.056 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.18 mm |
| Length - Above Flange [x] | 0.125 in |
| Length - Below Flange [x] | 1.52 mm |
| Length - Below Flange [x] | 0.06 in |
| Length - Overall | 0.215 in |
| Length - Overall | 5.46 mm |
| Mounting Hole Diameter [diameter] | 0.64 mm |
| Mounting Hole Diameter [diameter] | 0.025 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Pentagon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.46 | |||
| 3000 | $ 0.42 | |||
Description
General part information
9000-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
