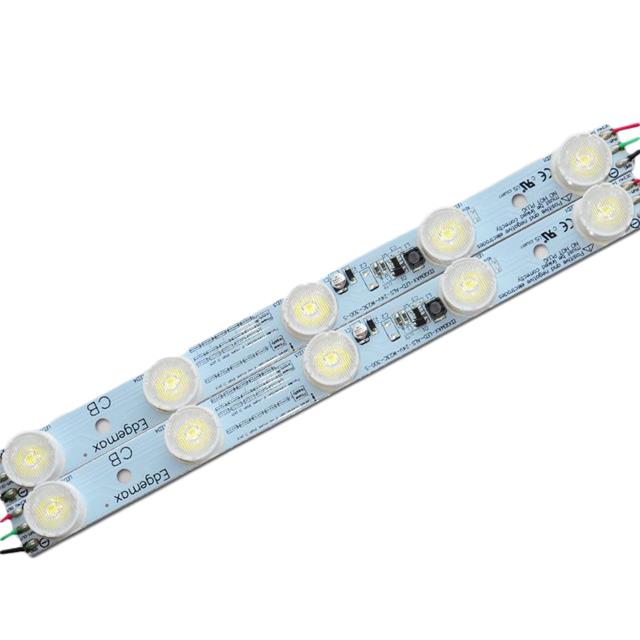

ALS-24V-1W23-3535-360-5

Active

Edgelight LLC

LED MOD WH LNR LGT STRIP 7000K

Search across all available documentation for this part.

Active

Edgelight LLC

LED MOD WH LNR LGT STRIP 7000K

Technical Specifications

Parameters and characteristics for this part

Specification	ALS-24V-1W23-3535-360-5

CCT (K) [Max]	7000 K
CCT (K) [Min]	6000 K
Color	Cool, White
Configuration	Linear Light Strip
Current - Max [Max]	612 mA
Features	Dimming
Height [z]	14 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	110 lm/W
Luminous Flux @ Current/Temperature	1622 lm
Size / Dimension [x]	360 mm
Size / Dimension [y]	23 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	24 V

Part	Color	Size / Dimension [x]	CCT (K)	Viewing Angle [y]	Viewing Angle [x]	Type	Configuration	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Lens Type	CCT (K) [Min]	CCT (K) [Max]	Current - Max [Max]	Features	Lumens/Watt @ Current - Test	Height [z]	Size / Dimension [y]
Edgelight LLC ALS-24V-W23C-300-5	White	300 mm	6500 K	39 °	13 °	LED Engine	Linear Light Strip
Edgelight LLC ALS-24V-1W23-3535-470-9	Cool White	470 mm				LED Module	Linear Light Strip	950 lm	24 V	Flat	6000 K	6500 K	500 mA	Dimming	130 lm/W	14 mm	23 mm
Edgelight LLC ALS-24V-1W23-3535-360-5	Cool White	360 mm				LED Module	Linear Light Strip	1622 lm	24 V	Flat	6000 K	7000 K	612 mA	Dimming	110 lm/W	14 mm	23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Linear Light Strip
