RB53P06C16C

Active

Serpac

BOX PLAS CLR 4.724"L X 3.152"W

Search across all available documentation for this part.

Active

Serpac

BOX PLAS CLR 4.724"L X 3.152"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB53P06C16C

Color	Clear
Container Type	Box
Design	Cover Included
Height [z]	2.165 in
Height [z]	55 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	3.152 in
Size / Dimension [y]	80.06 mm
Thickness	3 mm
Thickness	0.118 in

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Thickness	Thickness	Ratings	Container Type	Material Flammability Rating	Material	Design	Color
Serpac RB53P06C16G	120 mm	3.152 in	4.724 "	80.06 mm	2.165 in	55 mm	3 mm	0.118 in	IP67 NEMA 4	Box	UL94 V-0	Plastic Polycarbonate	Cover Included	Clear Cover/Door Gray
Serpac RB53P06C16B	120 mm	3.152 in	4.724 "	80.06 mm	2.165 in	55 mm	3 mm	0.118 in	IP67 NEMA 4	Box	UL94 V-0	Plastic Polycarbonate	Cover Included	Black Clear Cover/Door
Serpac RB53P06C16C	120 mm	3.152 in	4.724 "	80.06 mm	2.165 in	55 mm	3 mm	0.118 in	IP67 NEMA 4	Box	UL94 V-0	Plastic Polycarbonate	Cover Included	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

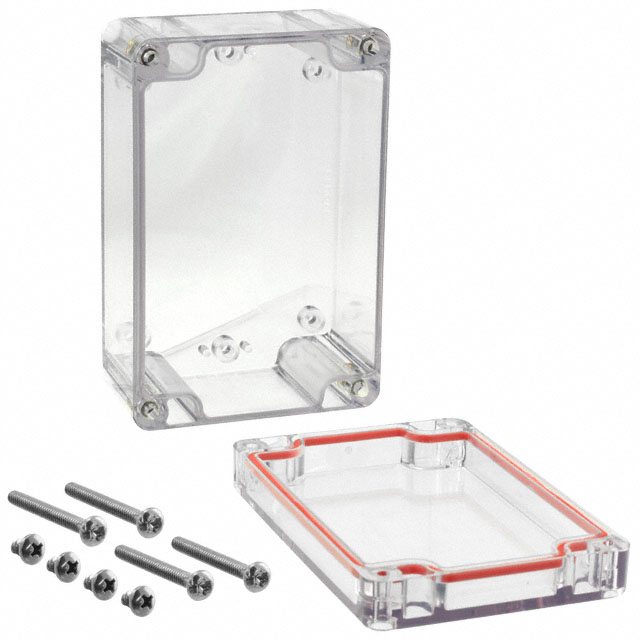

Box Plastic, Polycarbonate Clear Cover Included 4.724" L x 3.152" W (120.00mm x 80.06mm) X 2.165" (55.00mm)
