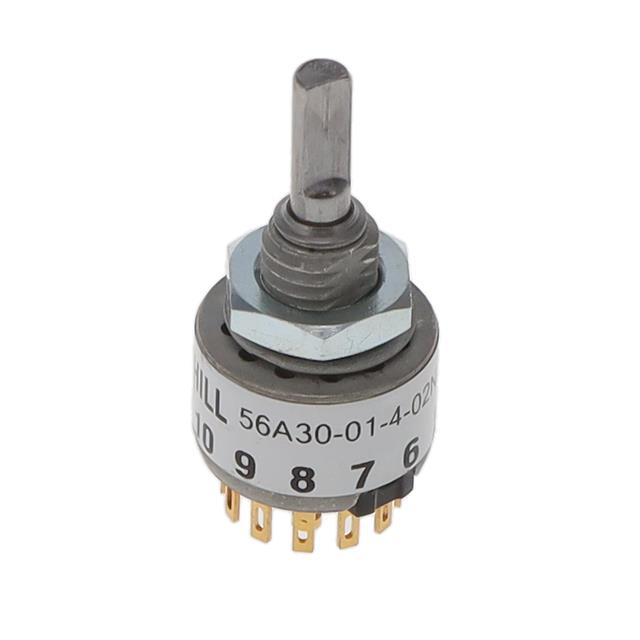

56A30-01-4-02N

Active

Grayhill Inc.

SWITCH ROTARY 2POS 200MA 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

56A30-01-4-02N

Active

Grayhill Inc.

SWITCH ROTARY 2POS 200MA 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	56A30-01-4-02N

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck [custom]	4PDT
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA
Depth Behind Panel [z]	12.19 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Positions	2
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

56A30 Series

Part	Contact Timing	Number of Decks [custom]	Number of Positions	Termination Style	Actuator Type [diameter]	Actuator Type	Current Rating (Amps)	Index Stops	Actuator Length [x]	Voltage Rating - AC	Circuit per Deck [custom]	Angle of Throw	Depth Behind Panel [z]	Voltage Rating - DC	Contact Finish	Contact Material	Number of Poles per Deck	Circuit per Deck	Features
Grayhill Inc. 56A30-01-4-02N	Non-Shorting	1	2	Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V	4PDT	30 °	12.19 mm	30 V	Silver	Brass
Grayhill Inc. 56A30-01-1-12N-F	Non-Shorting	1	12	Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	1	SP12T
Grayhill Inc. 56A30-01-1-06N	Non-Shorting	1	6	Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	1	SP6T
Grayhill Inc. 56A30-01-2-02N	Non-Shorting	1	2	Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	2	DPDT
Grayhill Inc. 56A30S-01B12S	Shorting	1	12	Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	1	SP12T	Shaft and Panel Sealed
Grayhill Inc. 56A30-01-2-05S	Shorting	1		Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	2	DP5T
Grayhill Inc. 56A30-01-1-03N	Non-Shorting	1		Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	1	SP3T
Grayhill Inc. 56A30-01-1-10N	Non-Shorting	1	10	Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	1	SP10T
Grayhill Inc. 56A30-01-1-05N	Non-Shorting	1		Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V		30 °	12.19 mm	30 V	Silver	Brass	1	SP5T
Grayhill Inc. 56A30-01-4-03S	Shorting	1		Solder Lug	3.17 mm	Flatted	200 mA	Fixed	9.53 mm	115 V	4P3T	30 °	12.19 mm	30 V	Silver	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.99
		5	$ 24.89
		10	$ 23.33
		25	$ 21.38
		50	$ 20.02
		100	$ 18.78
		250	$ 17.22
		500	$ 16.90

Description

General part information

56A30 Series

Rotary Switch 2 Position 4PDT 200mA (AC/DC) 115 VAC Panel Mount

Documents

Technical documentation and resources
