851-41-010-10-021000

Active

Mill-Max Manufacturing Corp.

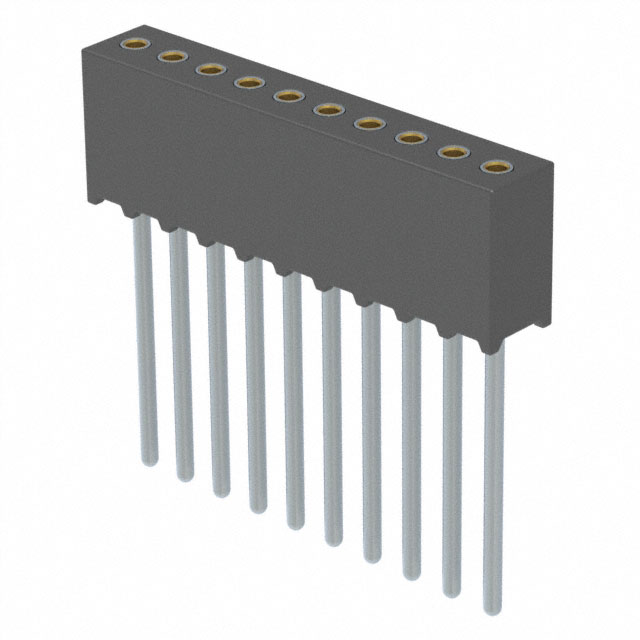

CONN RCPT 10POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

851-41-010-10-021000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 10POS 0.05 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	851-41-010-10-021000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.296 in
Contact Length - Post [x]	7.52 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.161 in
Insulation Height	4.1 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

851-41 Series

...

Part	Connector Type	Material Flammability Rating	Contact Finish - Post	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Current Rating (Amps)	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions Loaded	Number of Rows	Fastening Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 851-41-011-30-001000	Receptacle	UL94 V-0	Tin	Surface Mount	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.207 in	5.25 mm	11	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black
Mill-Max Manufacturing Corp. 851-41-010-10-021000	Receptacle		Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6	0.161 in	4.1 mm	10	Circular		Solder	Brass Alloy			0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black	0.296 in	7.52 mm
Mill-Max Manufacturing Corp. 851-41-032-10-011000	Receptacle		Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polyamide (PA46) Nylon 4/6	0.161 in	4.1 mm		Circular		Solder	Brass Alloy			0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black	0.196 in		4.98 mm
Mill-Max Manufacturing Corp. 851-41-009-10-002000	Receptacle	UL94 V-0	Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.185 in	4.7 mm	9	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			2.92 mm	0.115 in
Mill-Max Manufacturing Corp. 851-41-006-10-001000	Receptacle	UL94 V-0	Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.161 in	4.1 mm	6	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			0.099 in		2.51 mm
Mill-Max Manufacturing Corp. 851-41-030-20-001000	Receptacle	UL94 V-0	Tin	Through Hole Right Angle	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.087 "	2.2 mm	30	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			3 mm	0.118 in
Mill-Max Manufacturing Corp. 851-41-018-20-001000	Receptacle	UL94 V-0	Tin	Through Hole Right Angle	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.087 "	2.2 mm	18	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			3 mm	0.118 in
Mill-Max Manufacturing Corp. 851-41-017-10-001000	Receptacle	UL94 V-0	Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.161 in	4.1 mm		Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			0.099 in		2.51 mm
Mill-Max Manufacturing Corp. 851-41-036-10-001000	Receptacle	UL94 V-0	Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.161 in	4.1 mm	36	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			0.099 in		2.51 mm
Mill-Max Manufacturing Corp. 851-41-022-10-002000	Receptacle	UL94 V-0	Tin	Through Hole	Female Socket	10 çin	0.25 çm	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.185 in	4.7 mm	22 positions	Circular	3 A	Solder	Beryllium Copper	-55 °C	125 °C	0.05 in	1.27 mm	Gold	All	1	Push-Pull	Black			2.92 mm	0.115 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 11.37

Description

General part information

851-41 Series

10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
