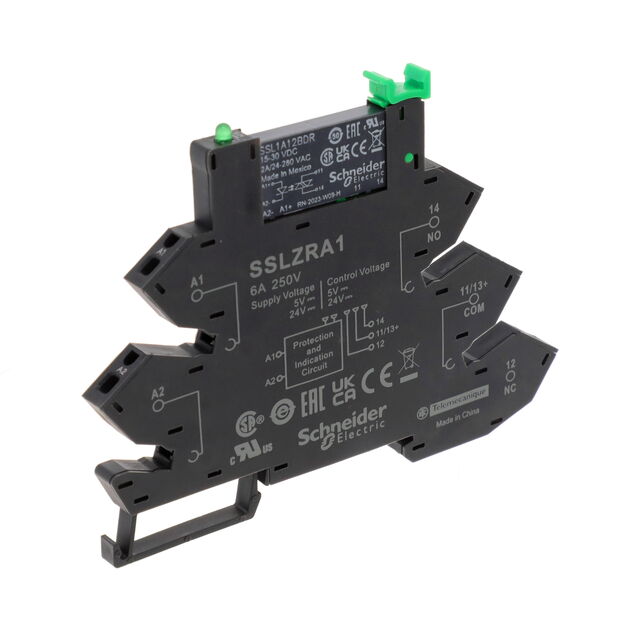

SSL1A12BDRPR

Active

SQUARE D BY SCHNEIDER ELECTRIC

SSR RELAY SPST-NO 2A 24-250V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SSR RELAY SPST-NO 2A 24-250V

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Package / Case	Approval Agency	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12JD	AC Zero Cross	PC Pin	12 V	3 V	Through Hole	4-SIP Module	CE CSA GOST UL	4-SIP	24 V	280 V	2 A	-20 C	70 °C
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12BDR	AC	PC Pin	30 V	15 V	Through Hole	4-SIP	CE CSA GOST UL		24 V	280 V	2 A	-20 C	70 °C
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12BD	AC Zero Cross	PC Pin	30 V	15 V	Through Hole	4-SIP Module	CE CSA UL	4-SIP	24 V	280 V	2 A	-20 C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12JDR	AC	PC Pin	12 V	3 V	Through Hole	4-SIP	CE CSA GOST UL		24 V	280 V	2 A	-20 C	70 °C
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12BDPR	AC Zero Cross	Screw Terminal	30 V	16 V	DIN Rail	Module	CE CSA GOST UL				2 A	-20 C	70 °C
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12BDRPR	AC	Screw Terminal	30 V	16 V	DIN Rail	Module	CE CSA GOST UL				2 A	-20 C	70 °C
SQUARE D BY SCHNEIDER ELECTRIC SSL1A12BDRPV	AC	Screw Terminal	30 V	16 V	DIN Rail	Module	CE CSA GOST UL				2 A	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
