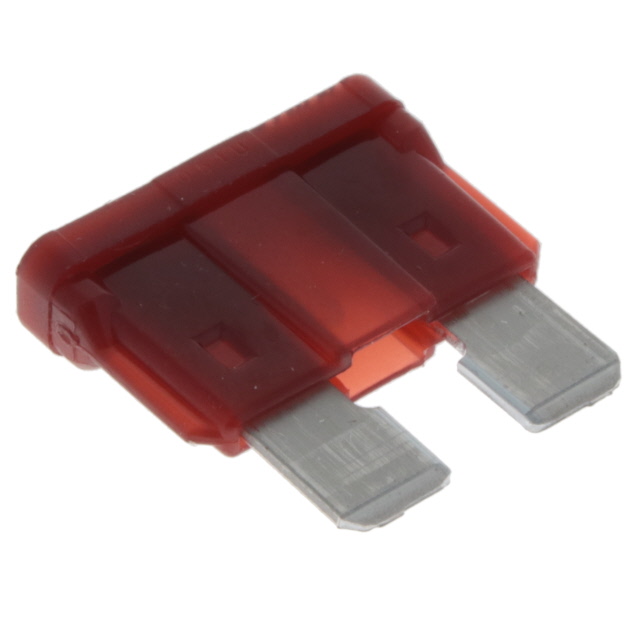

028707.5H

Active

Littelfuse/Commercial Vehicle Products

FUSE BLADE 7.5A 32V HOLDER QUICK CONNECT 19.1 X 5.1 X 12.3MM POLYAMIDE 66 UL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fuse, Fuseholder Product Guide +1

028707.5H

Active

Littelfuse/Commercial Vehicle Products

FUSE BLADE 7.5A 32V HOLDER QUICK CONNECT 19.1 X 5.1 X 12.3MM POLYAMIDE 66 UL

Deep-Dive with AI

DocumentsDatasheet Fuse, Fuseholder Product Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	028707.5H

Approval Agency	CSA, UL
Color	Brown
Current Rating (Amps)	7.5 A
DC Cold Resistance	0.01091 Ohms
Fuse Type	Automotive
Melting I²t	60
Mounting Type	Requires Holder
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Size / Dimension [x]	0.752 in
Size / Dimension [x]	19.1 mm
Size / Dimension [y]	0.201 "
Size / Dimension [y]	5.1 mm
Size / Dimension [z]	12.3 mm
Size / Dimension [z]	0.484 in
Voltage Rating - DC	32 V

028707.5H Series

Fuse - ATOF 32VDC Nylon 7.5A 100 pc

Part	Package / Case	Approval Agency	Voltage Rating - DC	Color	DC Cold Resistance	Mounting Type	Fuse Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Melting I²t
Littelfuse/Commercial Vehicle Products 028707.5H	ATC ATO Blade	CSA UL	32 V	Brown	0.01091 Ohms	Requires Holder	Automotive	7.5 A	-40 °C	105 ░C	0.201 "	5.1 mm	12.3 mm	0.752 in	19.1 mm	0.484 in	60

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.44
		10	$ 0.40
		50	$ 0.34
		100	$ 0.30
		200	$ 0.27
		500	$ 0.24
Digikey	Bulk	1	$ 0.47
		5	$ 0.46
		10	$ 0.44
		50	$ 0.37
		100	$ 0.31
		300	$ 0.28
		500	$ 0.24
		1000	$ 0.21
		5000	$ 0.19
Newark	Each	100	$ 0.31
		500	$ 0.26
		1000	$ 0.23
		2500	$ 0.21

Description

General part information

028707.5H Series

This 7.5 A ATOF® 32V automotive blade fuses replaced an obsolete ATO Series 257 fuse with the same ampere rating. Automakers around the world consider ATOF fuses standard equipment for protecting low-voltage circuits.
