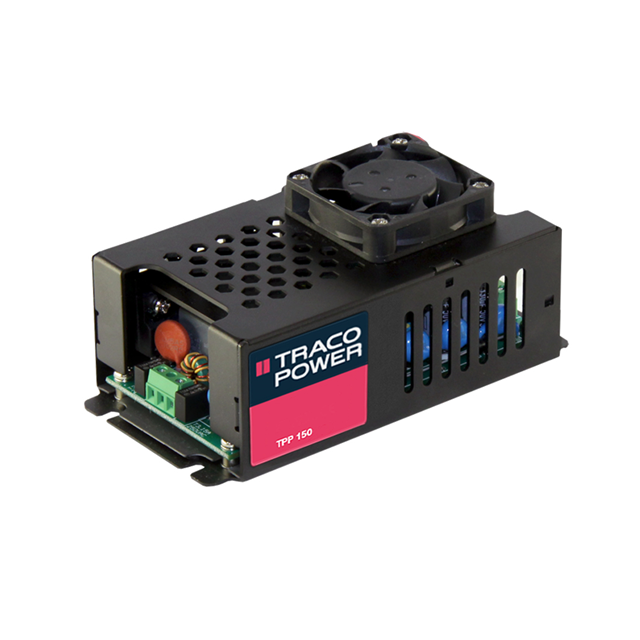

TPP 150-128
ActiveTraco Power
AC/DC CONVERTER 28V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPP 150-128
ActiveTraco Power
AC/DC CONVERTER 28V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPP 150-128 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 5.36 A |
| Efficiency | 92 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [z] | 49.3 mm |
| Size / Dimension [z] | 1.94 " |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 123.38 | |
| 10 | $ 113.28 | |||
| 25 | $ 109.50 | |||
| 50 | $ 106.72 | |||
| 100 | $ 92.47 | |||
Description
General part information
TPP 150 Series
Enclosed AC DC Converters 1 Output 28V 85 ~ 264 VAC, 120 ~ 370 VDC Input
