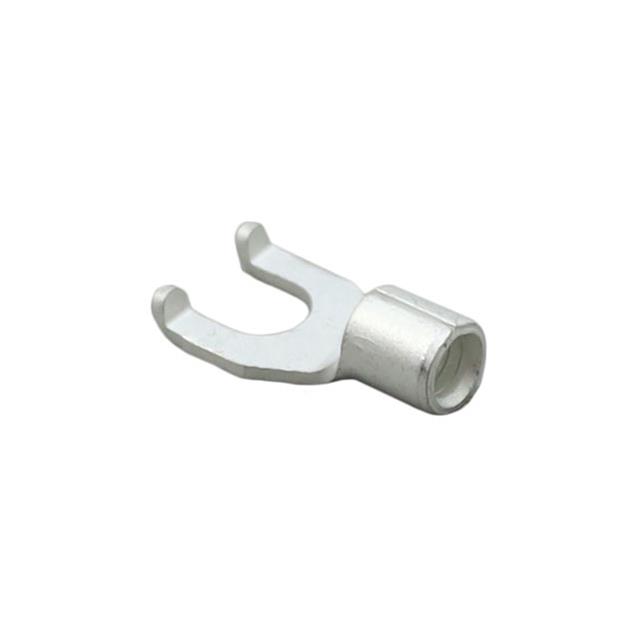

0191180088

Active

Molex

CONN SPADE TERM 10-12AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0191180088

Active

Molex

CONN SPADE TERM 10-12AWG #10

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191180088

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	18.29 mm
Length - Overall	0.72 "
Length - Ring Center to Termination [x]	6.86 mm
Length - Ring Center to Termination [x]	0.27 in
Length - Termination [x]	5.59 mm
Length - Termination [x]	0.22 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening [x]	5.31 mm
Tongue Inside Opening [x]	0.209 in
Width - Outer Edges	0.385 in
Width - Outer Edges	9.78 mm
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019118 Series

Part	Contact Material	Width - Outer Edges	Width - Outer Edges	Mounting Type	Contact Finish	Terminal Type	Length - Overall	Length - Overall	Termination	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation	Stud/Tab Size	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Termination	Length - Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Length - Termination [custom]	Length - Termination [custom]
Molex 0191180086	Copper	0.385 in	9.78 mm	Free Hanging (In-Line)	Electro-Tin	Flanged	18.29 mm	0.72 "	Crimp	5.59 mm	0.22 in	6.86 mm	0.27 in	Non-Insulated	8 Stud	0.173 in	4.39 mm	12 AWG	10 AWG
Molex 0191180056	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged			Crimp					Non-Insulated	8 Stud	0.173 in	4.39 mm			4.19 mm	0.165 in	0.301 in	7.65 mm	0.209 in	5.31 mm	14.48 mm	0.57 in
Molex 0191180084	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged	18.29 mm	0.72 "	Crimp	5.59 mm	0.22 in	6.86 mm	0.27 in	Non-Insulated		0.146 in	3.71 mm	12 AWG	10 AWG									0.345 in	8.76 mm	6 Stud
Molex 0191180087	Copper	0.385 in	9.78 mm	Free Hanging (In-Line)	Electro-Tin	Flanged	18.29 mm	0.72 "	Crimp	5.59 mm	0.22 in	6.86 mm	0.27 in	Non-Insulated	8 Stud	0.173 in	4.39 mm	12 AWG	10 AWG
Molex 0191180025	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged			Crimp				0.207 in	Non-Insulated		0.198 in	5.03 mm	22 AWG	17.5 AWG	4.19 mm	0.165 in	0.291 in	7.39 mm		5.26 mm	14.12 mm	0.556 in			6 Stud
Molex 0191180054	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged			Crimp					Non-Insulated		0.146 in	3.71 mm			4.19 mm	0.165 in	0.301 in	7.65 mm	0.209 in	5.31 mm	14.48 mm	0.57 in			6 Stud
Molex 0191180083	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged	19.91 mm	0.784 in	Crimp			7.75 mm	0.305 "	Non-Insulated		0.198 in	5.03 mm	12 AWG	10 AWG									0.32 in	8.13 mm	10 Stud	0.245 in	6.22 mm
Molex 0191180023	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged			Crimp				0.207 in	Non-Insulated	8 Stud	0.173 in	4.39 mm	22 AWG	17.5 AWG	4.19 mm	0.165 in	0.291 in	7.39 mm		5.26 mm	14.12 mm	0.556 in
Molex 0191180082	Copper			Free Hanging (In-Line)	Electro-Tin	Flanged	19.91 mm	0.784 in	Crimp			7.75 mm	0.305 "	Non-Insulated		0.198 in	5.03 mm	12 AWG	10 AWG									0.32 in	8.13 mm	10 Stud	0.245 in	6.22 mm
Molex 0191180088	Copper	0.385 in	9.78 mm	Free Hanging (In-Line)	Electro-Tin	Flanged	18.29 mm	0.72 "	Crimp	5.59 mm	0.22 in	6.86 mm	0.27 in	Non-Insulated		0.209 in	5.31 mm	12 AWG	10 AWG											10 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.32
		10	$ 0.26
		100	$ 0.19
		1000	$ 0.15
		3000	$ 0.14

Description

General part information

019118 Series

10 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
