306-006-400-104

Active

EDAC Inc.

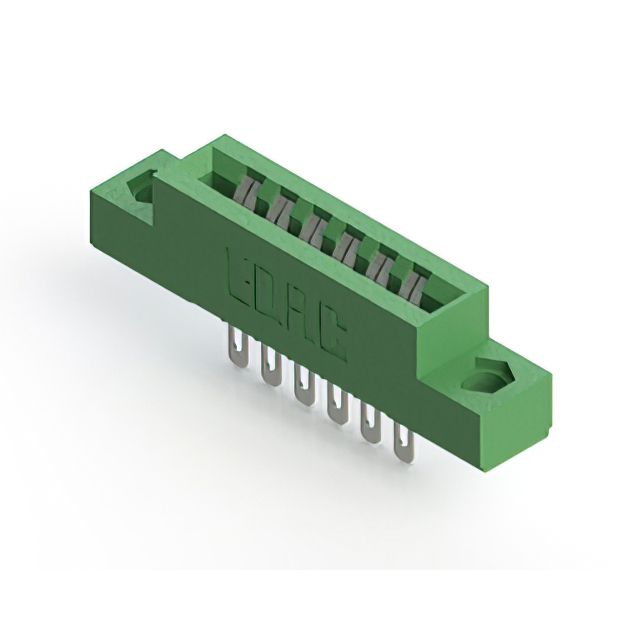

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

306-006-400-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-006-400-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-006 Series

Part	Read Out	Contact Finish	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Termination Rows	Card Type	Number of Positions	Gender	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Features
EDAC Inc. 306-006-520-101	Dual	Gold	Solder	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6	10 Áin	0.25 Ám	Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 306-006-525-102	Dual	Gold	Solder	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6			Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 306-006-520-104	Dual	Gold	Solder	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6	10 Áin	0.25 Ám	Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 306-006-420-101	Dual	Tin	Solder	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6			Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 306-006-400-178	Dual	Tin	Solder Eyelet(s)	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6			Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in				4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 306-006-520-112	Dual	Gold	Solder	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6	10 Áin	0.25 Ám	Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Panel Mount Through Hole	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded
EDAC Inc. 306-006-400-112	Dual	Tin	Solder Eyelet(s)	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6			Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded
EDAC Inc. 306-006-400-104	Dual	Tin	Solder Eyelet(s)	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6			Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in		3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 306-006-520-102	Dual	Gold	Solder	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6	10 Áin	0.25 Ám	Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 306-006-400-102	Dual	Tin	Solder Eyelet(s)	Green	-40 °C	105 ░C	Copper Alloy	2	1	Non Specified - Dual Edge	12	Female	0.156 in	3.96 mm	6			Cantilever	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
