C1CXS-1436G

Active

CW Industries

IDC CABLE - CKC14S/AE14G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC14S/AE14G/X

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Cable Termination	Shielding	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Color	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish	Usage	Pitch - Cable	Pitch - Cable	Number of Positions
CW Industries C1CXS-1636M	2	IDC	Unshielded	3 ft	914.4 mm	2.54 µm	100 µin	16	Polarizing Key	Multiple Ribbon	0.1 in	2.54 mm	Socket to Cable	Tin	Board In	0.05 "	1.27 mm
CW Industries C1CXS-1636G	2	IDC	Unshielded	3 ft	914.4 mm	2.54 µm	100 µin	16	Polarizing Key		0.1 in	2.54 mm	Socket to Cable	Tin	Board In	0.05 "	1.27 mm
CW Industries C1CXS-1436G	2	IDC	Unshielded	3 ft	914.4 mm	2.54 µm	100 µin		Polarizing Key		0.1 in	2.54 mm	Socket to Cable	Tin	Board In	0.05 "	1.27 mm	14
CW Industries C1CXS-1036M	2	IDC	Unshielded	3 ft	914.4 mm	2.54 µm	100 µin		Polarizing Key	Multiple Ribbon	0.1 in	2.54 mm	Socket to Cable	Tin	Board In	0.05 "	1.27 mm	10
CW Industries C1CXS-1436M	2	IDC	Unshielded	3 ft	914.4 mm	2.54 µm	100 µin		Polarizing Key	Multiple Ribbon	0.1 in	2.54 mm	Socket to Cable	Tin	Board In	0.05 "	1.27 mm	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

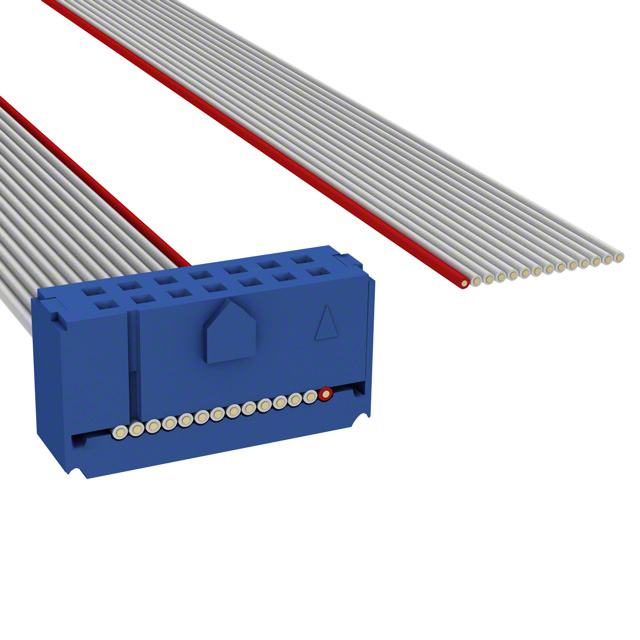

14 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
