20SVP10M

Active

Panasonic Industrial Automation Sales

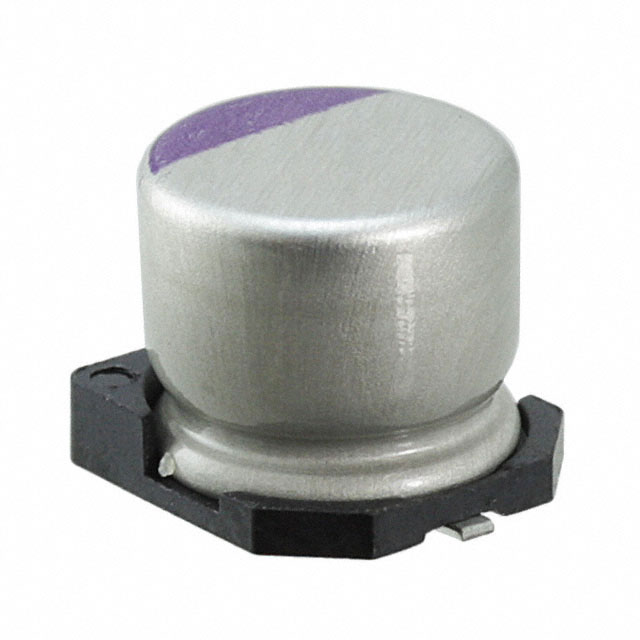

CAP, 10ΜF, 20V, 20%, RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

20SVP10M

Active

Panasonic Industrial Automation Sales

CAP, 10ΜF, 20V, 20%, RADIAL

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20SVP10M

Applications	General Purpose
Capacitance	10 µF
ESR (Equivalent Series Resistance)	120 mOhm
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	1.02 A
Ripple Current @ Low Frequency	51 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Surface Mount Land Size [x]	0.209 in
Surface Mount Land Size [x]	5.3 mm
Surface Mount Land Size [y]	5.3 mm
Surface Mount Land Size [y]	0.209 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	20 V

20SVP Series

Part	Ripple Current @ High Frequency	Mounting Type	Capacitance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Lifetime @ Temp.	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Type	Applications	Voltage - Rated	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 20SVP100M	3.32 A	Surface Mount	100 µF	0.327 "	8.3 mm	0.327 in	8.3 mm	2000 Hrs	20 %	0.315 "	8 mm	Radial Can - SMD	Polymer	General Purpose	20 V	24 mOhms	12 mm	0.472 "	166 mA	105 ░C	-55 °C
Panasonic Industrial Automation Sales 20SVP22M	1.45 A	Surface Mount	22 µF	0.26 in	6.6 mm	0.26 in	6.6 mm	2000 Hrs	20 %	0.248 in	6.3 mm	Radial Can - SMD	Polymer	General Purpose	20 V	60 mOhms			72.5 mA	105 ░C	-55 °C	0.236 in	6 mm
Panasonic Industrial Automation Sales 20SVP27M	1.45 A	Surface Mount	27 µF	0.26 in	6.6 mm	0.26 in	6.6 mm	2000 Hrs	20 %	0.248 in	6.3 mm	Radial Can - SMD	Polymer	General Purpose	20 V	60 mOhms			72.5 mA	105 ░C	-55 °C	0.236 in	6 mm
Panasonic Industrial Automation Sales 20SVP10M	1.02 A	Surface Mount	10 µF	0.209 in	5.3 mm	0.209 in	5.3 mm	2000 Hrs	20 %	0.197 "	5 mm	Radial Can - SMD	Polymer	General Purpose	20 V	120 mOhm			51 mA	105 ░C	-55 °C	0.236 in	6 mm
Panasonic Industrial Automation Sales 20SVP56M	2.4 A	Surface Mount	56 µF	0.406 in	10.3 mm	0.406 "	10.3 mm	2000 Hrs	20 %	0.394 in	10 mm	Radial Can - SMD	Polymer	General Purpose	20 V	40 mOhm	8 mm	0.315 in	120 mA	105 ░C	-55 °C
