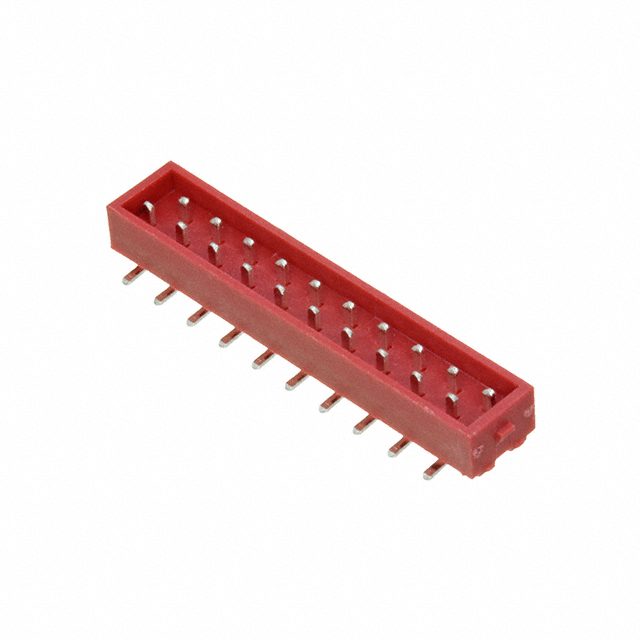

3522-20-0101-99

Active

CnC Tech, LLC

CONN HEADER SMD 20POS 2.54MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER SMD 20POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	3522-20-0101-99

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 VAC

Part	Material Flammability Rating	Number of Rows	Pitch - Mating	Pitch - Mating	Style	Contact Shape	Insulation Material	Termination	Insulation Height	Insulation Height	Connector Type	Contact Finish - Post	Fastening Type	Voltage Rating	Mounting Type	Contact Type	Number of Positions	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shrouding
CnC Tech, LLC 3522-20-0101-99	UL94 V-0	2	0.1 in	2.54 mm	Board to Board Cable	Rectangular	Nylon 9T Polyamide (PA9T)	Solder	3.7 mm	0.146 "	Header	Tin	Locking Ramp	500 VAC	Surface Mount	Male Pin	20	All	-40 °C	105 ░C	Brass	Shrouded - 4 Wall
CnC Tech, LLC 3522-20-0100-99	UL94 V-0	2	0.1 in	2.54 mm	Board to Board Cable	Rectangular	Nylon 9T Polyamide (PA9T)	Kinked Pin Solder	3.7 mm	0.146 "	Header	Tin	Locking Ramp	500 VAC	Through Hole	Male Pin	20	All	-40 °C	105 ░C	Brass	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 20 position 0.100" (2.54mm)
