09155123002

Active

HARTING Technology Group

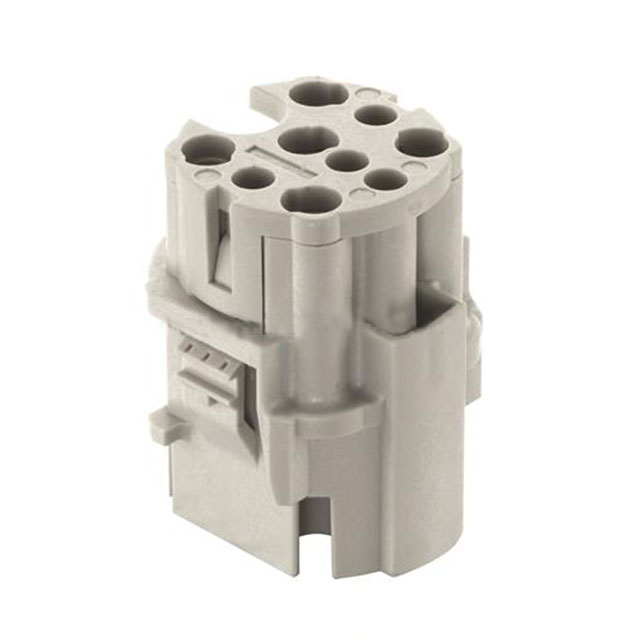

HAN F+B 4/4 HYBRID WITH ETHERNET

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN F+B 4/4 HYBRID WITH ETHERNET

Technical Specifications

Parameters and characteristics for this part

Specification	09155123002

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D, Han® E
Current Rating (Amps)	20 A, 10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	9+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	250 VDC, 400 V

Part	Current Rating (Amps)	Housing Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Voltage Rating	Material Flammability Rating	Termination Style	Gender	Number of Positions	Color
HARTING Technology Group 09155123101	20 A	Polycarbonate (PC)	4	5	1	Insert without Contacts	125 °C	-40 °C	Han® D Han® E	300 VDC	UL94 V-0	Crimp	Female
HARTING Technology Group 09155123001		Polycarbonate (PC)				Insert without Contacts	125 °C	-40 °C	Han® D Han® E		UL94 V-0	Crimp	Male	12+Ground	Gray
HARTING Technology Group 09155123002	10 A 20 A	Polycarbonate (PC)				Insert without Contacts	125 °C	-40 °C	Han® D Han® E	250 VDC 400 V	UL94 V-0	Crimp	Male	9+Ground	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 9+Ground Position Crimp
