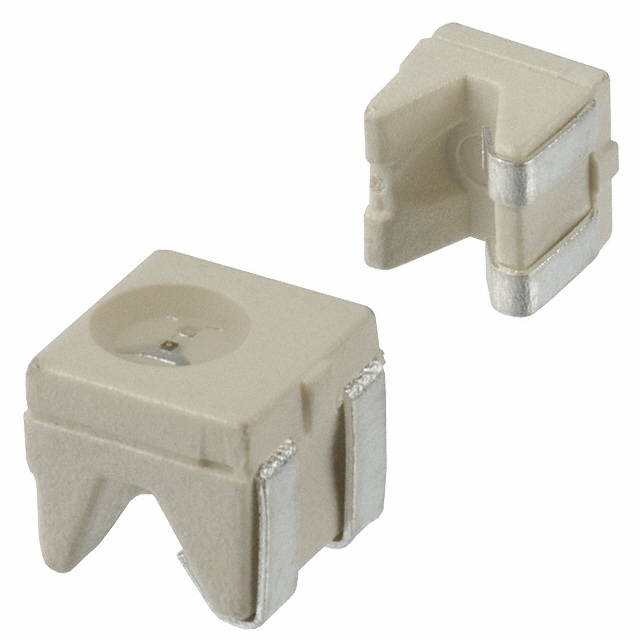

SML-LXR44SYC-TR

Active

Lumex Opto/Components Inc.

LED YELLOW CLR BOOMERANG SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LXR44SYC-TR

Active

Lumex Opto/Components Inc.

LED YELLOW CLR BOOMERANG SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LXR44SYC-TR

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	4 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating	200 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, Boomerang
Size / Dimension [x]	4 mm
Size / Dimension [y]	3.6 mm
Supplier Device Package	Boomerang
Viewing Angle [custom]	90 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	590 nm

SML-LXR44 Series

Part	Lens Transparency	Package / Case	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Mounting Type	Color	Supplier Device Package	Wavelength - Peak	Lens Color	Configuration	Viewing Angle [custom]	Lens Size [diameter]	Current - Test	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Viewing Angle	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SML-LXR44IC-TR	Clear	2-SMD Boomerang	2 V	4 mm	Surface Mount Right Angle	Red	Boomerang	635 nm	Colorless	Standard	90 °	2.4 mm	20 mA	25 mcd	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SRSUGC-TR	Clear	2-SMD Boomerang	1.85 V 2.1 V	4 mm	Surface Mount Right Angle	Green Red	Boomerang		Colorless	Bidirectional		2.4 mm	20 mA 20 mA	90 mcd 200 mcd	4 mm	3.6 mm	Round with Domed Top	120 °	660 nm	574 nm
Lumex Opto/Components Inc. SML-LXR44USBC-TR	Clear	2-SMD Boomerang	3.5 V	4 mm	Surface Mount	Blue	Boomerang		Colorless	Independent		2.4 mm	20 mA	170 mcd	4 mm	3.6 mm	Round with Domed Top	120 °
Lumex Opto/Components Inc. SML-LXR44GC-TR	Clear	2-SMD Boomerang	2.2 V	4 mm	Surface Mount Right Angle	Green	Boomerang	565 nm	Colorless	Standard	90 °	2.4 mm	20 mA	25 mcd	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44UPGC-TR	Clear	2-SMD Boomerang	3.5 V	4 mm	Surface Mount	Green	Boomerang	525 nm	Colorless	Independent		2.4 mm	20 mA	150 mcd	4 mm	3.6 mm	Round with Domed Top	120 °
Lumex Opto/Components Inc. SML-LXR44SYC-TR	Clear	2-SMD Boomerang	2 V	4 mm	Surface Mount Right Angle	Yellow	Boomerang	590 nm	Colorless	Standard	90 °	2.4 mm	20 mA	200 mcd	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SUGC-TR	Clear	2-SMD Boomerang	2.2 V	4 mm	Surface Mount Right Angle	Green	Boomerang		Colorless	Standard	90 °	2.4 mm	20 mA	210 mcd	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SIC-TR	Clear	2-SMD Boomerang	2 V	4 mm	Surface Mount Right Angle	Red	Boomerang	636 nm	Colorless	Standard	90 °	2.4 mm	20 mA	170 mcd	4 mm	3.6 mm
Lumex Opto/Components Inc. SML-LXR44SRC-TR	Clear	2-SMD Boomerang	1.7 V	4 mm	Surface Mount Right Angle	Red	Boomerang	660 nm	Colorless	Standard	90 °	2.4 mm	20 mA	80 mcd	4 mm	3.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.22
		10	$ 0.75
		100	$ 0.52
	Digi-Reel®	1	$ 1.22
		10	$ 0.75
		100	$ 0.52
	Tape & Reel (TR)	500	$ 0.43
		1000	$ 0.40
		1500	$ 0.38
		2500	$ 0.37
		3500	$ 0.36
		5000	$ 0.35
		12500	$ 0.33
		25000	$ 0.32

Description

General part information

SML-LXR44 Series

Yellow LED Indication - Discrete 2V 2-SMD, Boomerang
