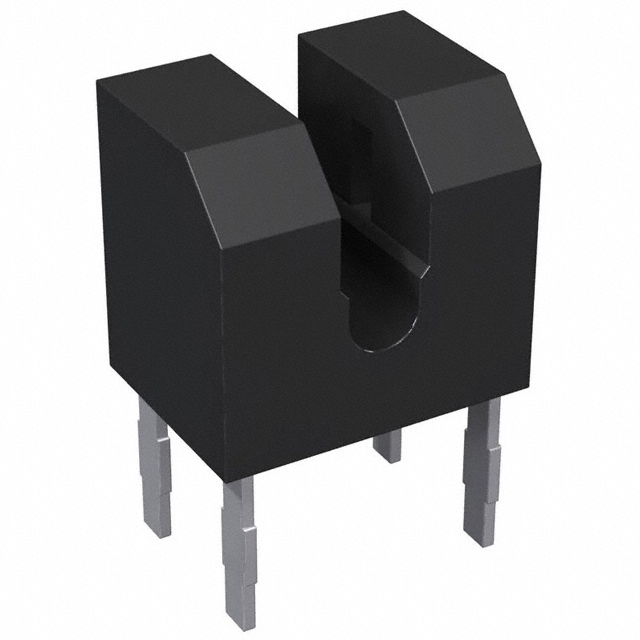

RPI-122

Active

Rohm Semiconductor

PHOTOINTERRUPTER DOUBLE MOLD TYPE

Search across all available documentation for this part.

Active

Rohm Semiconductor

PHOTOINTERRUPTER DOUBLE MOLD TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-122

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	10 µs
Sensing Distance	0.8 mm
Sensing Distance	0.031 "
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Photointerrupter Double Mold Type

Part	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Type	Current - DC Forward (If) (Max)	Output Configuration	Sensing Distance	Sensing Distance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Sensing Method
Rohm Semiconductor RPI-122	PCB Mount	30 V	30 mA	Unamplified	50 mA	Phototransistor	0.8 mm	0.031 "	Through Hole	-25 °C	85 °C	10 µs	Through-Beam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.88

General part information

ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.

Technical documentation and resources
