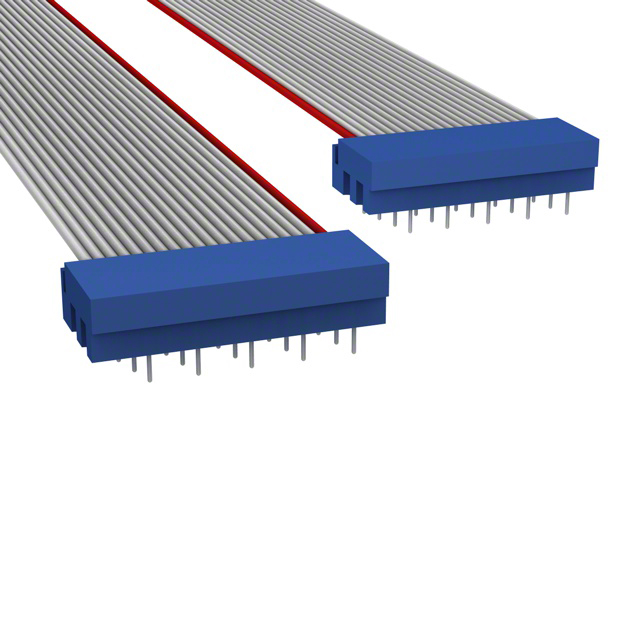

C3PPS-2036G

Active

CW Industries

IDC CABLE - CPC20S/AE20G/CPC20S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CPC20S/AE20G/CPC20S

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Contact Finish	Number of Positions	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length	Usage	Connector Type	Length [x]	Length [x]
CW Industries C3PPS-2006M	Unshielded	Tin-Lead	20	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '	Board In	PCB to PCB
CW Industries C3PPS-2618G	Unshielded	Tin-Lead	26	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm					Board In	PCB to PCB	457.2 mm	1.5 ft
CW Industries C3PPS-2618M	Unshielded	Tin-Lead	26	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm	Multiple Ribbon				Board In	PCB to PCB	457.2 mm	1.5 ft
CW Industries C3PPS-2606M	Unshielded	Tin-Lead	26	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '	Board In	PCB to PCB
CW Industries C3PPS-2036G	Unshielded	Tin-Lead	20	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm					Board In	PCB to PCB	914.4 mm	3 ft
CW Industries C3PPS-2018G	Unshielded	Tin-Lead	20	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm					Board In	PCB to PCB	457.2 mm	1.5 ft
CW Industries C3PPS-2606G	Unshielded	Tin-Lead	26	0.05 in	1.27 mm	IDC	2.54 µm	100 µin	0.05 "	1.27 mm		152.4 mm	6 "	0.5 '	Board In	PCB to PCB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular PCB to PCB 3.00' (914.40mm)
