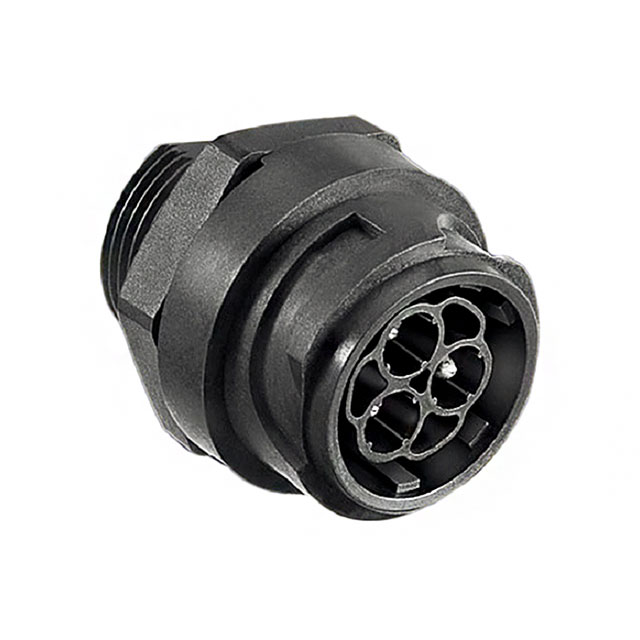

C016 10P002 800 1
ActiveAmphenol Tuchel Industrial
CONN RCPT HSNG MALE 3POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C016 10P002 800 1 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 2.5 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Note | Contacts Not Included |
| Number of Positions [custom] | 2 |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.80 | |
| 10 | $ 9.72 | |||
| 25 | $ 9.16 | |||
| 50 | $ 8.92 | |||
| 100 | $ 8.69 | |||
| 300 | $ 7.75 | |||
| 500 | $ 7.28 | |||
| 1000 | $ 6.43 | |||
Description
General part information
C016 10P002 Series
3 (2 + PE) Position Circular Connector Receptacle Housing Panel Mount UV Resistant
