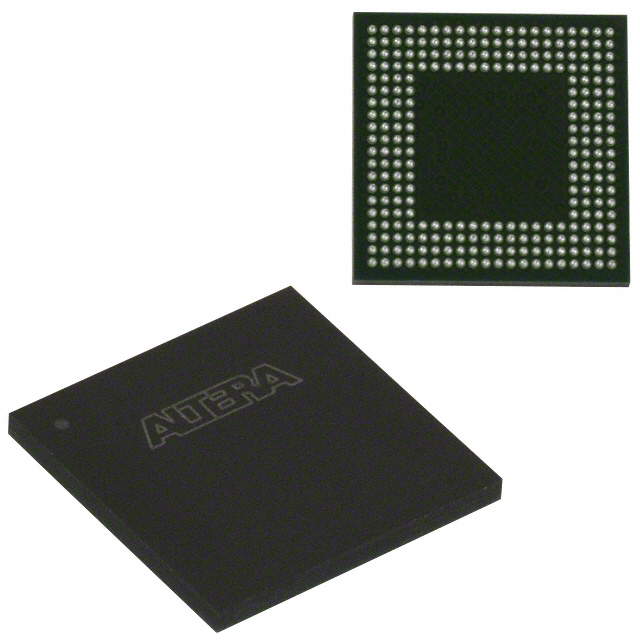

EPM7512BBC256-7

Obsolete

Altera

IC CPLD 512MC 7.5NS 256BGA

Deep-Dive with AI

Search across all available documentation for this part.

Documents256-BGA Pkg Info Datasheet

EPM7512BBC256-7

Obsolete

Altera

IC CPLD 512MC 7.5NS 256BGA

Deep-Dive with AI

Documents256-BGA Pkg Info Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPM7512BBC256-7

Delay Time tpd(1) Max [Max]	7.5 ns
Mounting Type	Surface Mount
Number of Gates	10000
Number of I/O	212
Number of Logic Elements/Blocks	32
Number of Macrocells [custom]	512
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	256-LBGA
Programmable Type	In System Programmable
Supplier Device Package	256-BGA (27x27)
Voltage Supply - Internal [Max]	2.625 V
Voltage Supply - Internal [Min]	2.375 V

EPM7512 Series

Part	Number of Macrocells [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Mounting Type	Delay Time tpd(1) Max [Max]	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Logic Elements/Blocks	Number of Gates	Programmable Type	Package / Case
Altera EPM7512AEBI256-10	512	256-FBGA (17x17)	85 °C	-40 °C	212	Surface Mount	10 ns	3 V	3.6 V	32	10000	In System Programmable	256-BGA
Altera EPM7512BUC169-7	512	169-UBGA (11x11)	70 °C	0 °C	141	Surface Mount	7.5 ns	2.375 V	2.625 V	32	10000	In System Programmable	169-LFBGA
Altera EPM7512BBC256-7	512	256-BGA (27x27)	70 °C	0 °C	212	Surface Mount	7.5 ns	2.375 V	2.625 V	32	10000	In System Programmable	256-LBGA
Altera EPM7512AEFI256-7	512	256-FBGA (17x17)	85 °C	-40 °C	212	Surface Mount	7.5 ns	3 V	3.6 V	32	10000	In System Programmable	256-BGA
Altera EPM7512AEFC256-10N	512	256-FBGA (17x17)	70 °C	0 °C	212	Surface Mount	10 ns	3 V	3.6 V	32	10000	In System Programmable	256-BGA
Altera EPM7512BQC208-5	512	208-PQFP (28x28)	70 °C	0 °C	176	Surface Mount	5.5 ns	2.375 V	2.625 V	32	10000	In System Programmable	208-BFQFP
Altera EPM7512BFC256-10	512	256-FBGA (17x17)	70 °C	0 °C	212	Surface Mount	10 ns	2.375 V	2.625 V	32	10000	In System Programmable	256-BGA
Altera EPM7512BTC144-5	512	144-TQFP (20x20)	70 °C	0 °C	120	Surface Mount	5.5 ns	2.375 V	2.625 V	32	10000	In System Programmable	144-LQFP
Altera EPM7512BQC208-6	512	208-PQFP (28x28)	70 °C	0 °C	176	Surface Mount		2.375 V	2.625 V	32	10000	In System Programmable	208-BFQFP
Altera EPM7512BFC256-7N	512	256-FBGA (17x17)	70 °C	0 °C	212	Surface Mount	7.5 ns	2.375 V	2.625 V	32	10000	In System Programmable	256-BGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 182.73
		2	$ 182.73

Description

General part information

EPM7512 Series

IC CPLD 512MC 7.5NS 256BGA

Documents

Technical documentation and resources

256-BGA Pkg Info

Datasheet
