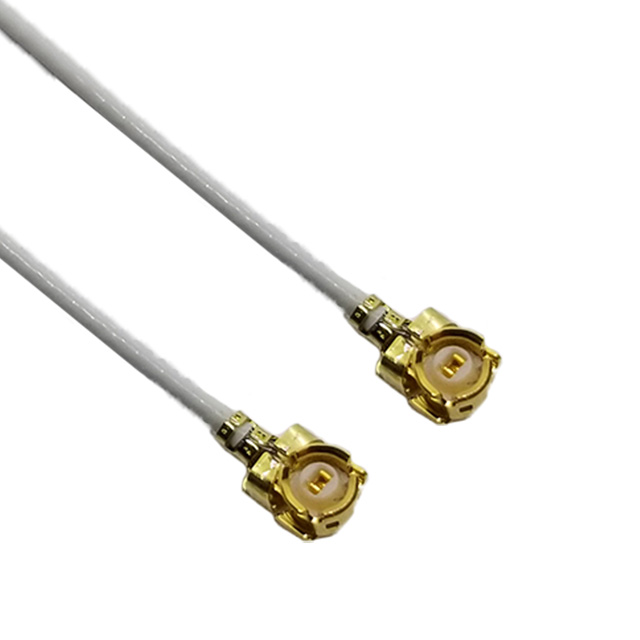

CB0.81-2IPX-5.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLUG-PLG 5.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB0.81-2IPX-5.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLUG-PLG 5.5"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB0.81-2IPX-5.5IN-6O

1st Connector	Right Angle, IPEX MHF1 Plug, U.FL (UMCC)
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	U.FL (UMCC), IPEX MHF1 Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	Coaxial Cable
Cable Type [diameter]	0.81 mm
Color	White
Features	Opposite Orientation, Shielded
Frequency - Max [Max]	9 GHz
Length [x]	5.5 in
Length [x]	139.7 mm
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1

CB0.81 Series

Part	1st Connector	2nd Connector Mounting Type	Cable Type	Cable Type [diameter]	1st Connector Mounting Type	Features	2nd Connector	Cable Impedance	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	1st Contact Gender	Style	Color	2nd Contact Gender	Overall Impedance	Length	Length
Lighthorse Technologies, Inc CB0.81-2IPX-5.5IN-6O	IPEX MHF1 Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	U.FL (UMCC) IPEX MHF1 Plug Right Angle	50 Ohms	5.5 in	139.7 mm	90 °C	-40 °C	9 GHz	Female	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	White	Female	50 Ohms
Lighthorse Technologies, Inc CB0.81-2IPX-5IN-6O	IPEX MHF1 Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	U.FL (UMCC) IPEX MHF1 Plug Right Angle	50 Ohms			90 °C	-40 °C	9 GHz	Female	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	White	Female	50 Ohms	5 in	127 mm
Lighthorse Technologies, Inc CB0.81-2IPX-12.5IN-6O	IPEX MHF1 Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	U.FL (UMCC) IPEX MHF1 Plug Right Angle	50 Ohms	12.5 in	317.5 mm	90 °C	-40 °C	9 GHz	Female	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	White	Female	50 Ohms
Lighthorse Technologies, Inc CB0.81-2IPX-3IN-6O	IPEX MHF1 Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	U.FL (UMCC) IPEX MHF1 Plug Right Angle	50 Ohms			90 °C	-40 °C	9 GHz	Female	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	White	Female	50 Ohms	3 in	76.2 mm
Lighthorse Technologies, Inc CB0.81-2IPX4L-7.5IN-6O	IPEX MHF4L Plug Right Angle	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	7.5 in	190.5 mm	90 °C	-40 °C	12 GHz	Female	IPEX MHF4L to IPEX MHF4L	White	Female	50 Ohms
Lighthorse Technologies, Inc CB0.81-2IPX4L-2.5IN	IPEX MHF4L Plug Right Angle	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	2.5 in	63.5 mm	90 °C	-40 °C	12 GHz	Female	IPEX MHF4L to IPEX MHF4L	White	Female	50 Ohms
Lighthorse Technologies, Inc CB0.81-2IPX4L-1IN-6O	IPEX MHF4L Plug Right Angle	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1 in	25.4 mm	90 °C	-40 °C	12 GHz	Female	IPEX MHF4L to IPEX MHF4L	White	Female	50 Ohms
Lighthorse Technologies, Inc CB0.81-2IPX4L-11.5IN-6O	IPEX MHF4L Plug Right Angle	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	IPEX MHF4L Plug Right Angle	50 Ohms			90 °C	-40 °C	12 GHz	Female	IPEX MHF4L to IPEX MHF4L	White	Female	50 Ohms	11.5 "	292.1 mm
Lighthorse Technologies, Inc CB0.81-2IPX-5IN	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Shielded	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms			90 °C	-40 °C	9 GHz	Female	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	White	Female	50 Ohms	5 in	127 mm
Lighthorse Technologies, Inc CB0.81-2IPX4L-12IN-6O	IPEX MHF4L Plug Right Angle	Free Hanging (In-Line)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	Opposite Orientation Shielded	IPEX MHF4L Plug Right Angle	50 Ohms			90 °C	-40 °C	12 GHz	Female	IPEX MHF4L to IPEX MHF4L	White	Female	50 Ohms	12 "	304.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.89
		10	$ 4.60
		25	$ 4.34
		50	$ 4.11
		100	$ 3.91
		250	$ 3.55
		500	$ 3.26
		1000	$ 3.01

Description

General part information

CB0.81 Series

Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 0.81mm OD Coaxial Cable 5.500" (139.70mm)
