G1G108-AB17-02

Active

ebm-papst Inc.

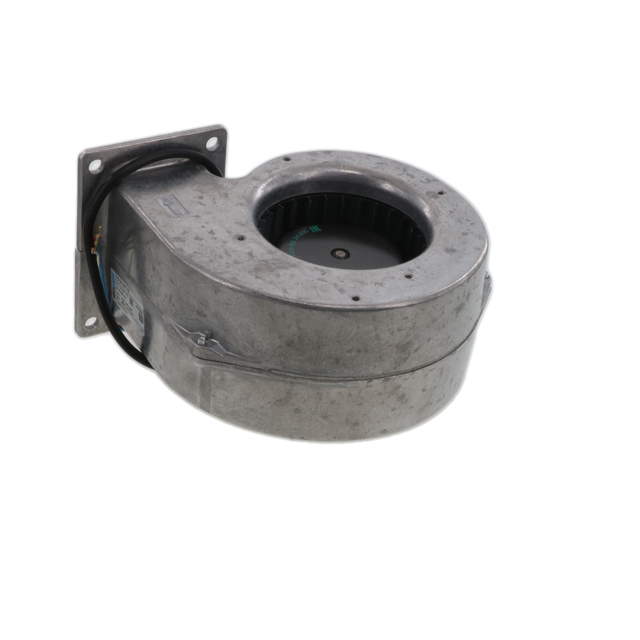

FAN BLOWER 159X115.0MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER 159X115.0MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	G1G108-AB17-02

Approval Agency	CSA, UL, EAC
Bearing Type	Ball
Fan Type	Blower
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP22
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	42 W
RPM	3000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	159 mm
Size / Dimension [y]	185 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Width [y]	115 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Ingress Protection	Termination	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Bearing Type	RPM	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Width [y]	Voltage - Rated	Features	Fan Type	Approval Agency
ebm-papst Inc. G1G108-AB17-02	16 VDC	28 VDC	Aluminum	IP22	4 Wire Leads with Splice Terminals	Steel	-25 °C	60 °C	42 W	Ball	3000 RPM	159 mm	Rectangular/Rounded	185 mm	115 mm	24 VDC	PWM Control Speed Sensor (Tach)	Blower	CSA EAC UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 159mm L x 185mm H Ball 4 Wire Leads with Splice Terminals
