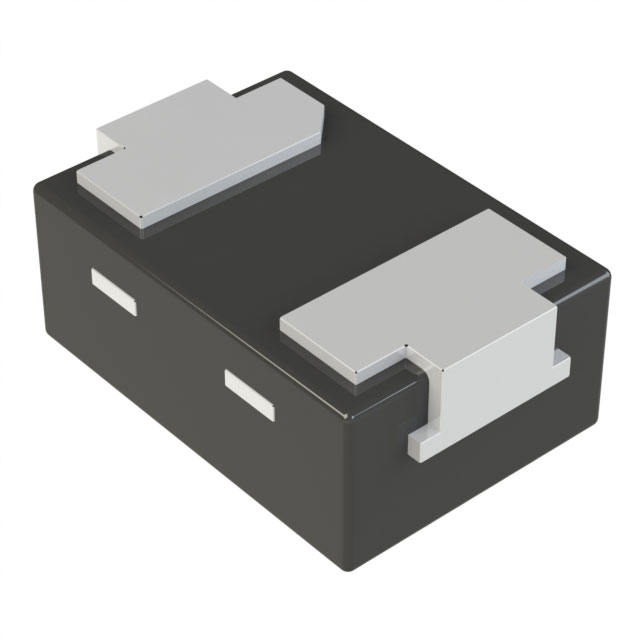

SZNZ8F33VSMX2WT5G

Obsolete

ON Semiconductor

ZENER DIODE VOLTAGE REGULATOR, 250MW, X2DFNW(0402), WETTABLE FLANK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-711BG-X2DFNW2 1.00x0.60x0.37, 0.65P +1

SZNZ8F33VSMX2WT5G

Obsolete

ON Semiconductor

ZENER DIODE VOLTAGE REGULATOR, 250MW, X2DFNW(0402), WETTABLE FLANK

Deep-Dive with AI

DocumentsDatasheet Package Drawing-711BG-X2DFNW2 1.00x0.60x0.37, 0.65P +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZNZ8F33VSMX2WT5G

Current - Reverse Leakage @ Vr	100 nA
Grade	Automotive
Impedance (Max) (Zzt) [Max]	95 Ohms
Mounting Type	Wettable Flank, Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	2-XDFN
Power - Max [Max]	250 mW
Qualification	AEC-Q101
Supplier Device Package	2-X2DFNW (1x0.6)
Supplier Device Package [x]	1
Supplier Device Package [y]	0.6
Tolerance	2.3 %
Voltage - Forward (Vf) (Max) @ If	900 mV
Voltage - Zener (Nom) (Vz)	33 V

SZNZ8F Series

Zener Diode Voltage Regulator, 250mW, X2DFNW(0402), Wettable Flank

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Power - Max [Max]	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt) [Max]	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Current - Reverse Leakage @ Vr	Grade	Qualification
ON Semiconductor NZ8F7V5MX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	5 %	250 mW	7.5 V	30 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	500 nA
ON Semiconductor SZNZ8F20VMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	5 %	250 mW	20 V	55 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	100 nA	Automotive	AEC-Q101
ON Semiconductor NZ8F2V7MX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	10 %	250 mW	2.7 V		Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	20 µA
ON Semiconductor NZ8F20VMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	5 %	250 mW	20 V	55 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	100 nA
ON Semiconductor SZNZ8F18VSMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	2.28 %	250 mW	18 V	50 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	100 nA	Automotive	AEC-Q101
ON Semiconductor SZNZ8F33VSMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	2.3 %	250 mW	33 V	95 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	100 nA	Automotive	AEC-Q101
ON Semiconductor SZNZ8F3V3MX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	7.58 %	250 mW	3.3 V		Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	10 µA	Automotive	AEC-Q101
ON Semiconductor NZ8F5V6SMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	2.32 %	250 mW	5.6 V	60 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	1 µA
ON Semiconductor NZ8F13VMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	5 %	250 mW	13 V	37 Ohms	Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	100 nA
ON Semiconductor NZ8F4V7SMX2WT5G	900 mV	150 °C	-65 °C	2-XDFN	2.34 %	250 mW	4.7 V		Surface Mount Wettable Flank	0.6	1	2-X2DFNW (1x0.6)	2 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

ON Semiconductor	N/A	1	$ 0.06

Description

General part information

SZNZ8F Series

This series of Zener diodes is packaged in a X2DFNW2 surface mount package with an industry standard size of 0402 in. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and automotive control units.
