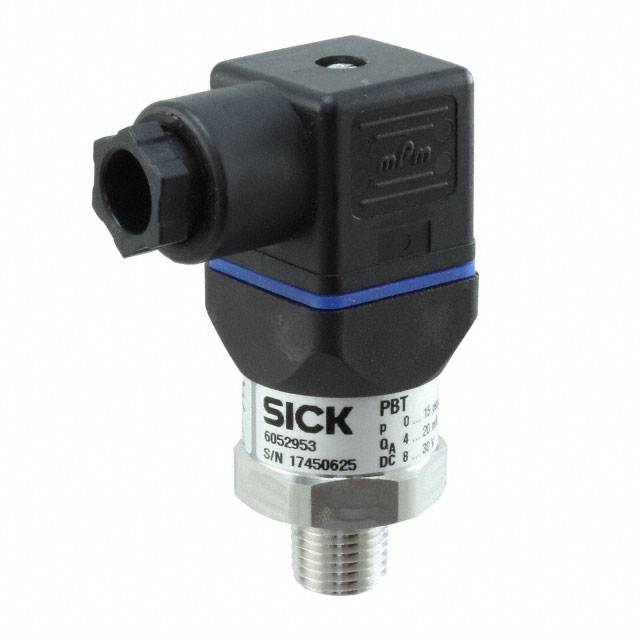

6052953
ActiveSICK, Inc.
PRESSURE TRANS 0-15 PSI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6052953
ActiveSICK, Inc.
PRESSURE TRANS 0-15 PSI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6052953 |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | 0 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder |
| Port Size | NPT, Female |
| Port Size | 0.25 " |
| Port Size | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
| Voltage - Supply [Max] | 35 V |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 132.30 | |
Description
General part information
PBT-RP015 Series
PRESSURE TRANS 0-15 PSI
