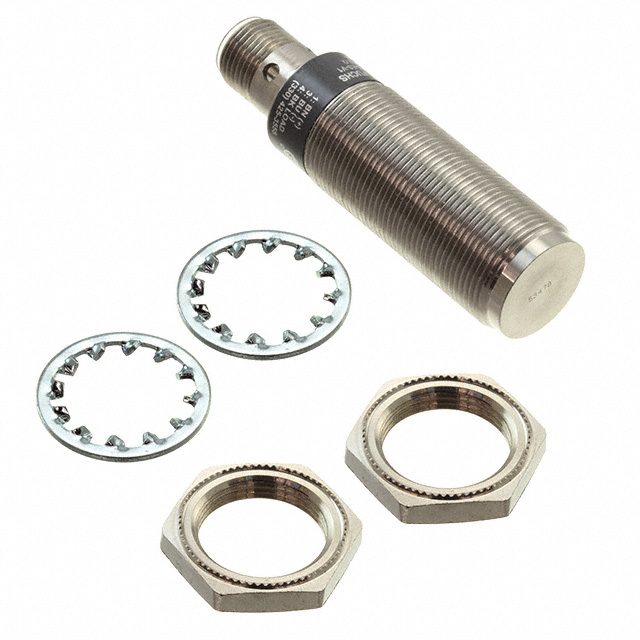

NMB10-18GM65-E0-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Indicator [custom]	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material - Body	Sensor Type	Sensing Distance	Sensing Distance	Termination Style	Package / Case	Output Type
PEPPERL+FUCHS NMB10-18GM65-E0-V1	30 VDC	10 VDC	LED	Unshielded	IP67 IP68 IP69K	70 °C	-25 °C	Stainless Steel	Inductive	0.394 in	10 mm	Connector	Cylinder Threaded - M18	NPN-NO 3-Wire
PEPPERL+FUCHS NMB10-18GM65-E2-C-V1	30 VDC	10 VDC	LED	Unshielded	IP67	70 °C	-25 °C	Stainless Steel	Inductive	0.394 in	10 mm	Connector	Cylinder Threaded - M18	PNP-NO 3-Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR

Technical documentation and resources
