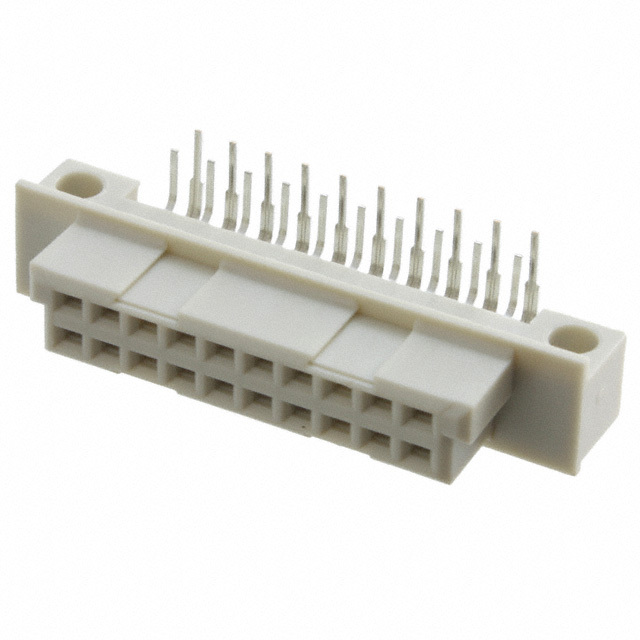

XC5F-3222
ActiveOmron Electronics Inc-EMC Div
CONN DIN RCPT 32POS
Deep-Dive with AI
Search across all available documentation for this part.
XC5F-3222
ActiveOmron Electronics Inc-EMC Div
CONN DIN RCPT 32POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC5F-3222 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | Q |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.19 | |
| 10 | $ 5.20 | |||
| 25 | $ 4.83 | |||
| 50 | $ 3.61 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.35 | |||
| 500 | $ 3.32 | |||
Description
General part information
XC5F Series
32 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
