PHV12-350S10P

Active

Bellnix Co., Ltd.

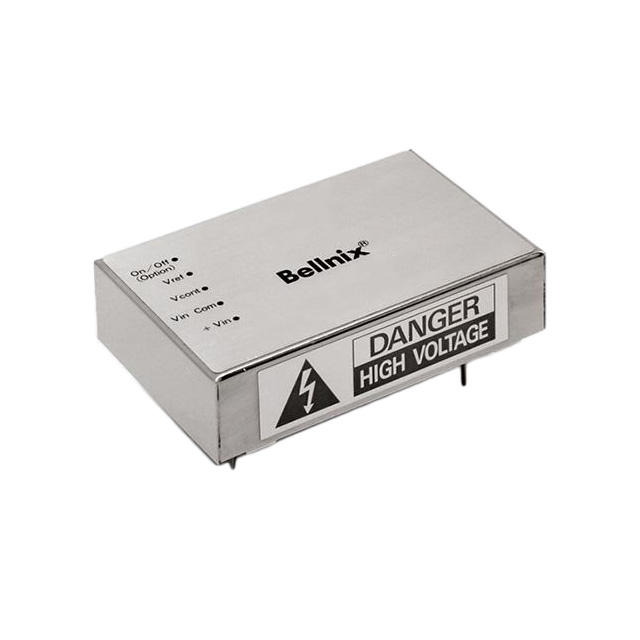

DC DC CONVERTER 350V 3.5W

Deep-Dive with AI

Search across all available documentation for this part.

PHV12-350S10P

Active

Bellnix Co., Ltd.

DC DC CONVERTER 350V 3.5W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHV12-350S10P

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	10 mA
Efficiency	68 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-10 °C
Package / Case	7-DIP Module, 6 Leads
Power (Watts)	3.5 W
Size / Dimension [x]	2.36 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	0.59 in
Size / Dimension [z]	15 mm
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Output 1	350 V

PHV12 Series

Part	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Control Features	Current - Output (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Type	Number of Outputs	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Features	Mounting Type	Applications
Bellnix Co., Ltd. PHV12-1.0K5000P	7-DIP Module 6 Leads	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	Active High Enable	5 mA	1000 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	5 W	72 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)
Bellnix Co., Ltd. PHV12-2.0K2500P	7-DIP Module 6 Leads	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	Active High Enable	2.5 mA	2000 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	5 W	72 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)
Bellnix Co., Ltd. PHV12-0.5K10000N	7-DIP Module 6 Leads	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	Active Low Enable	10 mA	-500 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	5 W	72 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)
Bellnix Co., Ltd. PHV12-2.0K2500N	7-DIP Module 6 Leads	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	Active Low Enable	2.5 mA	-2000 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	5 W	72 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)
Bellnix Co., Ltd. PHV12-0.5K10000P	7-DIP Module 6 Leads	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	Active High Enable	10 mA	500 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	5 W	72 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)
Bellnix Co., Ltd. PHV12-350S10P	7-DIP Module 6 Leads	0.59 in	1.57 "	15 mm	60 mm	2.36 in	40 mm	Active High Enable	10 mA	350 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	3.5 W	68 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)
Bellnix Co., Ltd. PHV12-1.0K5000N	7-DIP Module 6 Leads	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	Active Low Enable	5 mA	-1000 V	50 °C	-10 °C	16.5 V	High Voltage - Non-Isolated Module	1	5 W	72 %	10.8 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 207.91
		10	$ 201.21

Description

General part information

PHV12 Series

High Voltage - Non-Isolated Module DC DC Converter 1 Output 350V 10mA 10.8V - 16.5V Input

Documents

Technical documentation and resources

No documents available
