CONSMB003.062-G

Active

TE Connectivity Linx

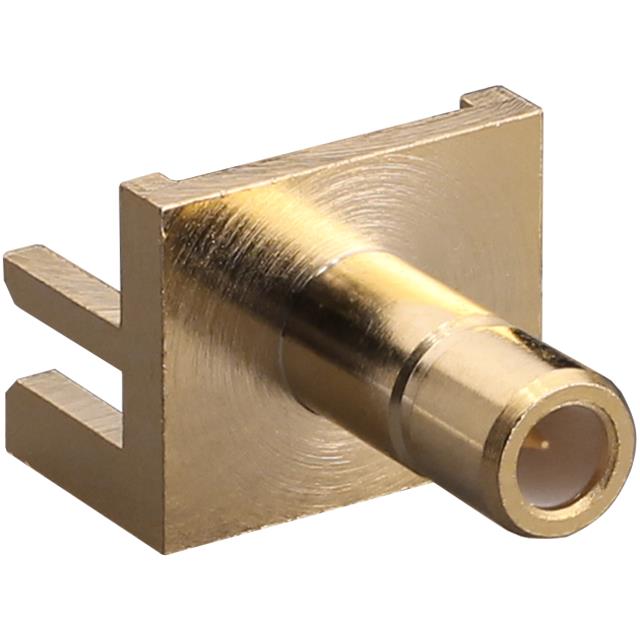

CONN SMB JACK STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN SMB JACK STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMB003.062-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	750 VDC

Part	Impedance	Shield Termination	Connector Type	Housing Color	Number of Ports	Center Contact Plating	Center Contact Material	Mounting Type	Dielectric Material	Voltage Rating	Body Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Style	Body Finish	Fastening Type	Contact Termination
TE Connectivity Linx CONSMB003.062-G	50 Ohms	Solder	Jack Male Pin	Gold	1	Gold	Brass	Board Edge End Launch	Polytetrafluoroethylene (PTFE)	750 VDC	Brass	6.5 GHz	-65 ░C	165 °C	500	SMB	Gold	Snap-On	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Board Edge, End Launch Solder
