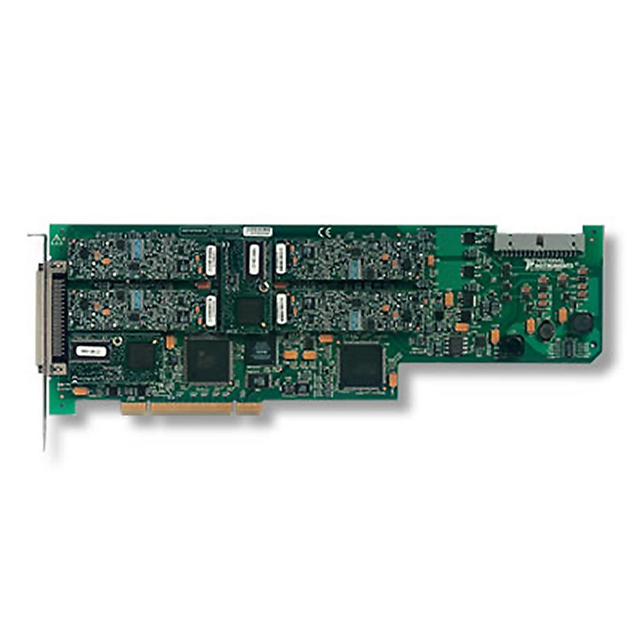

778397-01

Obsolete

DAQ DEVICE MULTIFUNCTION I/O PCI

Search across all available documentation for this part.

Obsolete

DAQ DEVICE MULTIFUNCTION I/O PCI

Technical Specifications

Parameters and characteristics for this part

Specification	778397-01

Bidirectional Channels	8
Bus Connection	PCI
Counter/Timers	2
Front Connection	SCSI
Function	Multifunction I/O
Input Range	42 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	4
Number of Inputs and Type [custom]	8
Number of Outputs and Type [custom]	2
Number of Outputs and Type [custom]	8
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	800k
Type	DAQ Device

Part	Front Connection	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Bidirectional Channels	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Function	Counter/Timers	Input Range	Output Range [Min]	Output Range [Max]	Sampling Rate (Per Second)	Bus Connection	Input Resolution	Type
NI 778397-01	SCSI	2	8	8	4	8	Multifunction I/O	2	42 V	-10 V	10 V	800k	PCI	16 Bits	DAQ Device

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Multifunction I/O DAQ Device PCI SCSI
