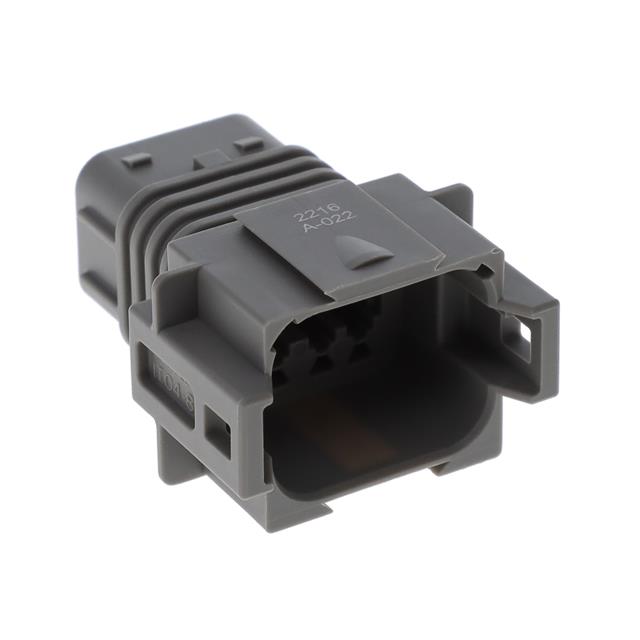

IT04-8PA-022
ActiveITT Cannon, LLC
CONN RCPT HSG 8POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IT04-8PA-022
ActiveITT Cannon, LLC
CONN RCPT HSG 8POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IT04-8PA-022 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
IT04-8 Series
| Part | Connector Type | Number of Rows | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mounting Type | Features | Fastening Type | Number of Positions | Insulation Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Receptacle | 2 | Black | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Cap (Cover) IP67 IP68 IP69K Sealed | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin |
ITT Cannon, LLC | Receptacle | 2 | Gray | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Cap (Cover) IP67 IP68 IP69K Sealed | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin |
ITT Cannon, LLC | Receptacle | 2 | Gray | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin | |
ITT Cannon, LLC | Receptacle | 2 | Black | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin | |
ITT Cannon, LLC | Receptacle | 2 | Black | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Cap (Cover) IP67 IP68 IP69K Sealed | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin |
ITT Cannon, LLC | Receptacle | 2 | Gray | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin | |
ITT Cannon, LLC | Receptacle | 2 | Black | -55 °C | 125 °C | Crimp | Free Hanging (In-Line) | Latch Holder | 8 | Glass Filled Nylon Polyamide (PA) | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.88 | |
| 10 | $ 1.64 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.54 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.23 | |||
Description
General part information
IT04-8 Series
8 Rectangular Connectors - Housings Receptacle Gray
