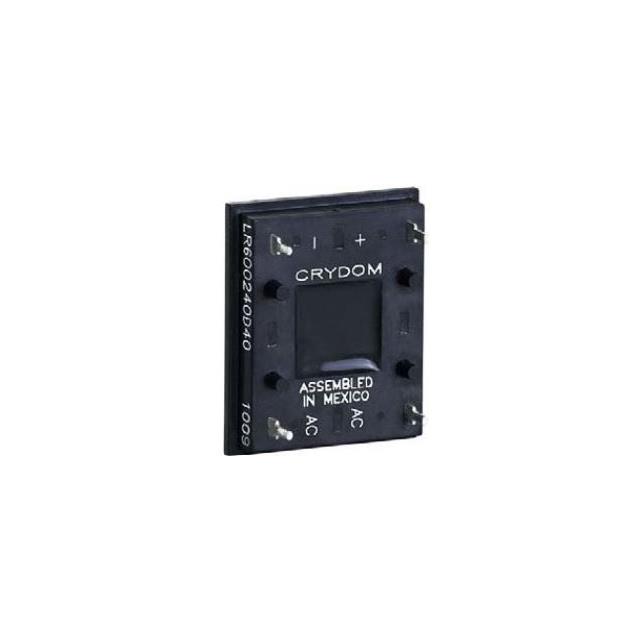

LR600240D25H

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Approval Agency	Supplier Device Package
Sensata-Crydom LR600240D40R	AC	40 A	24 V	280 V	Module	Through Hole	-30 ░C	80 C	32 V	4 V	PC Pin	CE cURus
Sensata-Crydom LR600240D40RH	AC	40 A	24 V	280 V	Module	Through Hole	-30 ░C	80 C	32 V	4 V	PC Pin	CE cURus
Sensata-Crydom LR600240D40	AC Zero Cross	40 A	24 V	280 V	Module	Through Hole	-30 ░C	80 C	32 V	4 V	PC Pin	CE cURus
Sensata-Crydom LR600240D25H	AC Zero Cross	25 A	24 V	280 V	Module	Chassis Mount	-30 ░C	80 C	32 V	4 V	Quick Connect - 0.250" (6.3mm)	CE cURus	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	14	$ 48.63
