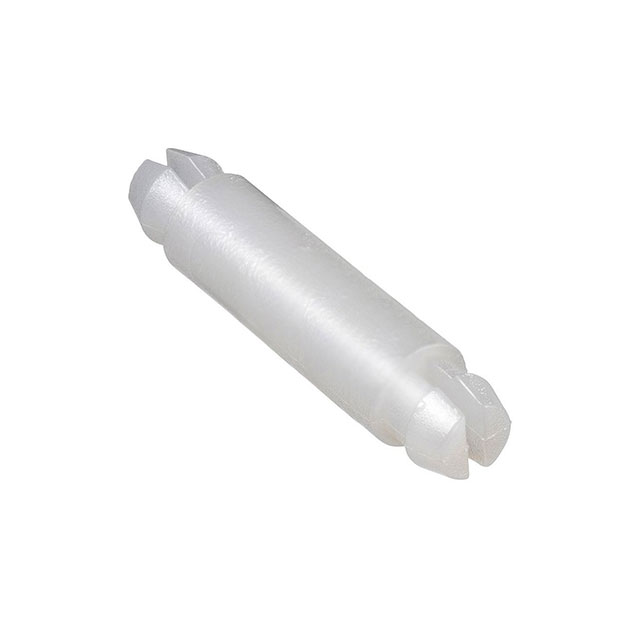

R6013-00
ActiveHarwin Inc.
12.70MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
R6013-00
ActiveHarwin Inc.
12.70MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R6013-00 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Holding Type | Snap Fit |
| Length - Overall [x] | 22.1 mm |
| Length - Overall [x] | 0.87 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.157 " |
| Mounting Hole Diameter [diameter] | 4 mm |
| Mounting Panel Thickness | 0.063 in |
| Mounting Panel Thickness | 1.6 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R6013 Series
Board Support Snap Fit / Snap Lock Nylon 0.500" (12.70mm) 1/2"
