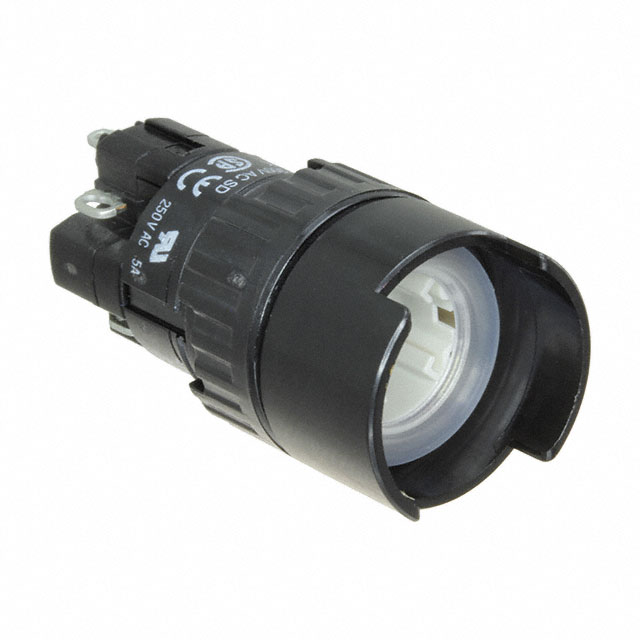

51-131.025
ActiveEAO
PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND
Deep-Dive with AI
Search across all available documentation for this part.
51-131.025
ActiveEAO
PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-131.025 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
51-131 Series
The 51-131.025 is a single-pole single-throw (SPST) 1NO-1NC Illuminated Pushbutton Switch with momentary function and solder terminals. The series-51 switch comes with snap-action and gold-plated over silver contacts.
