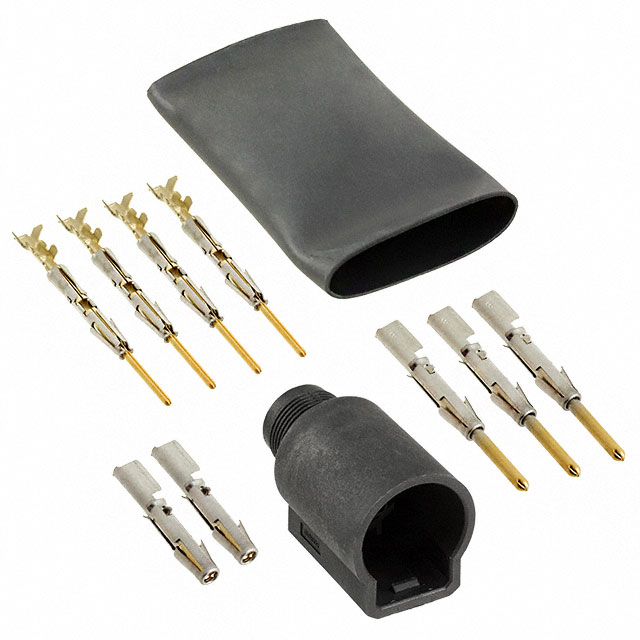

UTL1102G1W3P16AWG

Active

Souriau-Sunbank by Eaton

CONN CIRC RCPT 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

UTL1102G1W3P16AWG

Active

Souriau-Sunbank by Eaton

CONN CIRC RCPT 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTL1102G1W3P16AWG

Applications	Industrial
Color	Black
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	UV Resistant, Shrink Boot
Ingress Protection	IP69K, IP68, IP67
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 5VA
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	10-2
Shielding	Unshielded
Termination	Crimp

UTL11 Series

Part	Contact Type	Housing Color	Shell Material	Type	Fastening Type	Note	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Insert Material	Contact Shape	Material Flammability Rating	Contact Size	Orientation	Number of Positions	Ingress Protection	Mounting Type	Contact Size	Termination	Primary Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish - Mating	Features	Color	Applications
Souriau-Sunbank by Eaton UTL1102G1W3P	Crimp	Black	Glass Reinforced Nylon Polyamide (PA)	For Female Sockets and Male Pins	Latch Lock	Contacts Not Included	10-2	-40 °C	105 ░C	Receptacle Housing	Unshielded	Thermoplastic	Circular	UL94 5VA	16 (3) 20 (3)	Keyed	6	IP67 IP68 IP69K	Free Hanging (In-Line)
Souriau-Sunbank by Eaton UTL1102G1W3P03	Crimp	Gray	Glass Reinforced Nylon Polyamide (PA)	For Female Sockets and Male Pins	Latch Lock	Contacts Not Included	10-2	-40 °C	105 ░C	Receptacle Housing	Unshielded	Thermoplastic	Circular	UL94 5VA	16 (3) 20 (3)	Keyed	6	IP67 IP68 IP69K	Free Hanging (In-Line)
Souriau-Sunbank by Eaton UTL1103G1P	Crimp	Black	Glass Reinforced Nylon Polyamide (PA)	For Female Sockets and Male Pins	Latch Lock	Contacts Not Included	10-3	-40 °C	105 ░C	Receptacle Housing	Unshielded	Thermoplastic	Circular	UL94 5VA		Keyed	4	IP67 IP68 IP69K	Free Hanging (In-Line)	16
Souriau-Sunbank by Eaton UTL1102G1W3P14AWG			Glass Filled Nylon Polyamide (PA)		Latch Lock		10-2	-40 °C	105 ░C	Female Sockets Male Pins Receptacle	Unshielded	Nylon Polyamide (PA)		UL94 5VA			6	IP67 IP68 IP69K	Free Hanging (In-Line)		Crimp	Plastic	Copper Alloy	Flash	Gold	Shrink Boot UV Resistant	Black	Industrial
Souriau-Sunbank by Eaton UTL1102G1W3P16AWG			Glass Filled Nylon Polyamide (PA)		Latch Lock		10-2	-40 °C	105 ░C	Female Sockets Male Pins Receptacle	Unshielded	Nylon Polyamide (PA)		UL94 5VA			6	IP67 IP68 IP69K	Free Hanging (In-Line)		Crimp	Plastic	Copper Alloy	Flash	Gold	Shrink Boot UV Resistant	Black	Industrial
Souriau-Sunbank by Eaton UTL1102G1W3S14AWG			Glass Filled Nylon Polyamide (PA)		Latch Lock		10-2	-40 °C	105 ░C	Female Sockets Male Pins Receptacle	Unshielded	Nylon Polyamide (PA)		UL94 5VA			6	IP67 IP68 IP69K	Free Hanging (In-Line)		Crimp	Plastic	Copper Alloy	Flash	Gold	Shrink Boot UV Resistant	Black	Industrial
Souriau-Sunbank by Eaton UTL1103G1P14AWG			Glass Filled Nylon Polyamide (PA)		Latch Lock		10-3	-40 °C	105 ░C	Female Sockets Male Pins Receptacle	Unshielded	Thermoplastic		UL94 5VA			4	IP67 IP68 IP69K	Free Hanging (In-Line)		Crimp	Plastic	Copper Alloy	Flash	Gold	Shrink Boot UV Resistant	Black	Industrial
Souriau-Sunbank by Eaton UTL1103G1S20AWG			Glass Filled Nylon Polyamide (PA)		Latch Lock		10-3	-40 °C	105 ░C	Female Sockets Male Pins Receptacle	Unshielded	Thermoplastic		UL94 5VA			4	IP67 IP68 IP69K	Free Hanging (In-Line)		Crimp	Plastic	Copper Alloy	Flash	Gold	Shrink Boot UV Resistant	Black	Industrial
Souriau-Sunbank by Eaton UTL1102G1W3S03	Crimp	Gray	Glass Reinforced Nylon Polyamide (PA)	For Female Sockets and Male Pins	Latch Lock	Contacts Not Included	10-2	-40 °C	105 ░C	Receptacle Housing	Unshielded	Thermoplastic	Circular	UL94 5VA	16 (3) 20 (3)	Keyed	6	IP67 IP68 IP69K	Free Hanging (In-Line)
Souriau-Sunbank by Eaton UTL1103G1P20AWG			Glass Filled Nylon Polyamide (PA)		Latch Lock		10-3	-40 °C	105 ░C	Female Sockets Male Pins Receptacle	Unshielded	Thermoplastic		UL94 5VA			4	IP67 IP68 IP69K	Free Hanging (In-Line)		Crimp	Plastic	Copper Alloy	Flash	Gold	Shrink Boot UV Resistant	Black	Industrial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.77
Newark	Each	1	$ 30.04
		100	$ 23.30
		500	$ 20.07
		1000	$ 16.71
		2500	$ 15.89

Description

General part information

UTL11 Series

6 (3 + 2 Power + PE) Position Circular Connector Receptacle, Female Sockets and Male Pins Crimp
