1-1589951-5

Active

TE Connectivity Aerospace, Defense and Marine

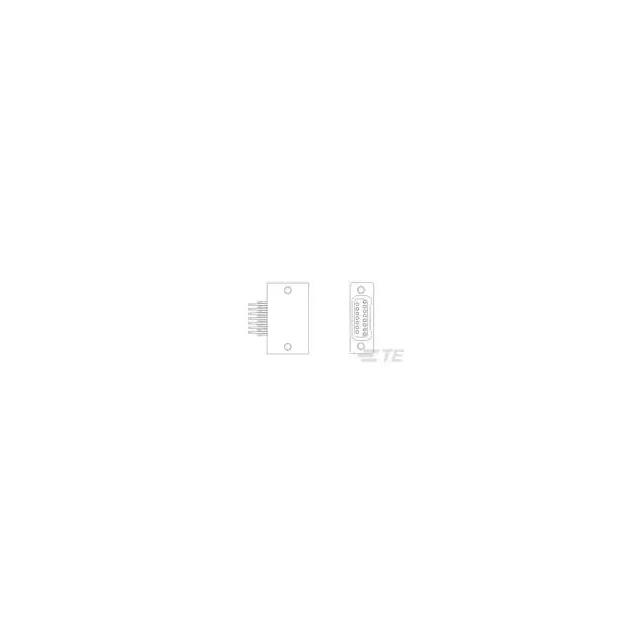

CONN NANO-D RCPT 9POS SMD R/A WW

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN NANO-D RCPT 9POS SMD R/A WW

Technical Specifications

Parameters and characteristics for this part

Specification	1-1589951-5

Connector Style	D-Type, Nano-D
Connector Type	Receptacle, Female Sockets
Dielectric Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Termination	Wire Wrap

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Dielectric Material	Mounting Type	Connector Type	Number of Rows	Shell Material, Finish	Connector Style	Number of Positions
TE Connectivity Aerospace, Defense and Marine 1-1589951-5	125 °C	-65 ░C	Wire Wrap	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Receptacle Female Sockets	2	Aluminum Alloy Electroless Nickel Plated	D-Type Nano-D	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Type, Nano-D Receptacle, Female Sockets Connector
