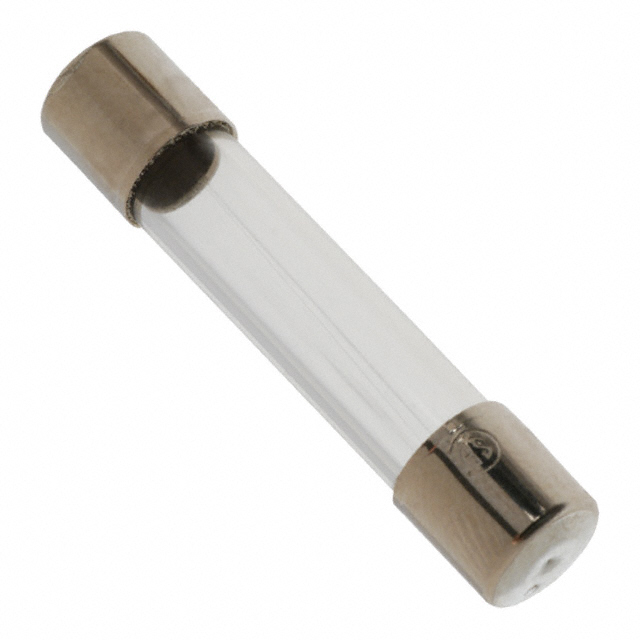

0312.500HXP - 312 Series 3AG

0312.500HXP

Active
Littelfuse/Commercial Vehicle Products

FUSE, CARTRIDGE, FAST ACTING, 500 MA, 250 V, 6.3MM X 32MM, 1/4" X 1-1/4", 312 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCircuit Protection Technology Application Matrix+4
0312.500HXP - 312 Series 3AG

0312.500HXP

Active
Littelfuse/Commercial Vehicle Products

FUSE, CARTRIDGE, FAST ACTING, 500 MA, 250 V, 6.3MM X 32MM, 1/4" X 1-1/4", 312 SERIES

Deep-Dive with AI

DocumentsDatasheetCircuit Protection Technology Application Matrix+4

Technical Specifications

Parameters and characteristics for this part

Specification0312.500HXP
Approval AgencyUL, CSA, CE
Breaking Capacity @ Rated Voltage35 A
Current Rating (Amps)0.5 A
DC Cold Resistance0.498 Ohms
Melting I˛t0.483
Mounting TypeRequires Holder
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case3AB, 3AG
Package / Case [x]1/4
Package / Case [y]1-1/4
Response TimeFast Blow
Size / Dimension [diameter]0.25 in
Size / Dimension [diameter]6.35 mm
Size / Dimension [x]31.75 mm
Size / Dimension [x]1.25 "
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.44
5$ 0.43
10$ 0.42
50$ 0.35
100$ 0.29
300$ 0.27
500$ 0.23
1000$ 0.20
5000$ 0.18
NewarkEach 1$ 0.70
10$ 0.53
25$ 0.49
50$ 0.44
100$ 0.41
500$ 0.34
1000$ 0.31

Description

General part information

0312.500 Series

The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
