H3BBG-10110-B4

Active

Hirose Electric USA, Inc.

JUMPER-H1505TR/A2015B/H1505TR10"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

JUMPER-H1505TR/A2015B/H1505TR10"

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Conductors	Wire Gauge	Number of Rows	Color	Length [x]	Length [x]	Contact Finish	Contact End	Length	Length
Hirose Electric USA, Inc. H3BBG-10104-B6	1	26 AWG	1	Black	101.6 mm	4 "	Gold	Socket to Socket
Hirose Electric USA, Inc. H3BBG-10110-B4	1	24 AWG	1	Black		10 in	Gold	Socket to Socket	254 mm
Hirose Electric USA, Inc. H3BBG-10110-N6	1	26 AWG	1	Brown		10 in	Gold	Socket to Socket	254 mm
Hirose Electric USA, Inc. H3BBG-10106-S2	1	22 AWG	1	Slate			Gold	Socket to Socket	152.4 mm	6 in
Hirose Electric USA, Inc. H3BBG-10103-N8	1	28 AWG	1	Brown		3 in	Gold	Socket to Socket	76.2 mm
Hirose Electric USA, Inc. H3BBG-10106-N2	1	22 AWG	1	Brown			Gold	Socket to Socket	152.4 mm	6 in
Hirose Electric USA, Inc. H3BBG-10112-G4	1	24 AWG	1	Green		12 in	Gold	Socket to Socket	304.8 mm
Hirose Electric USA, Inc. H3BBG-10112-S8	1	28 AWG	1	Slate		12 in	Gold	Socket to Socket	304.8 mm
Hirose Electric USA, Inc. H3BBG-10110-R2	1	22 AWG	1	Red		10 in	Gold	Socket to Socket	254 mm
Hirose Electric USA, Inc. H3BBG-10105-B2	1	22 AWG	1	Black	127 mm	5 in	Gold	Socket to Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

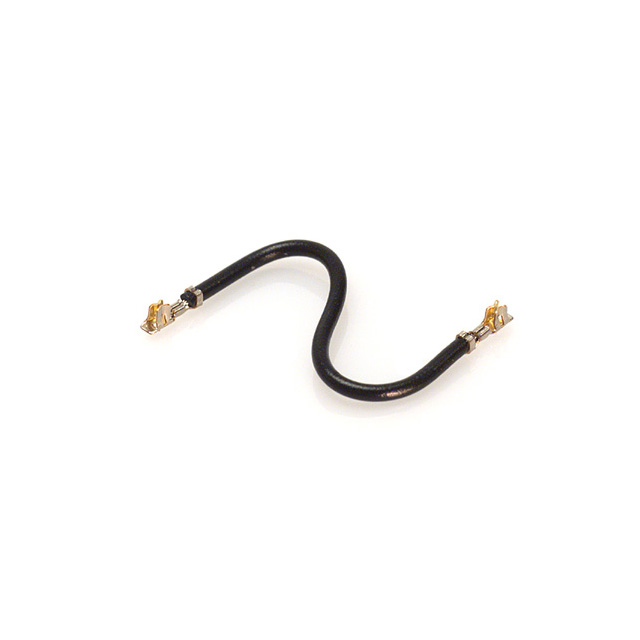

Black 24 AWG Jumper Lead Socket to Socket Gold 10.0" (254.0mm)
