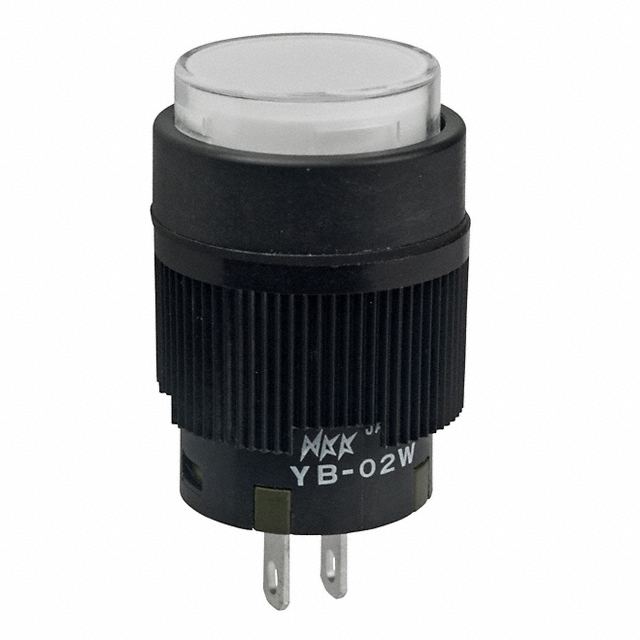

YB02WKW01-5F24-JB

Active

NKK Switches

INDICATOR PB RND GRN 24V ILLUM

Search across all available documentation for this part.

Active

NKK Switches

INDICATOR PB RND GRN 24V ILLUM

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lamp Color	Termination Style	Voltage	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lens Transparency	Panel Cutout Shape	Current	Ingress Protection	Ratings
NKK Switches YB02KW01-28-FB	Green	Green	Quick Connect - 0.110" (2.8mm)	28 V	16 mm	0.63 in	16 mm	Incandescent	Diffused	Round
NKK Switches YB02VA001	White	Red	Quick Connect - 0.110" (2.8mm)	1.9 V	15 mm	0.63 in	16 mm	LED	Clear	Round	26 mA	IP65
NKK Switches YB02KW01-5C24-JC
NKK Switches YB02KW01-5D12-JD	Amber	Amber	Quick Connect - 0.110" (2.8mm)	12 V	15 mm	0.63 in	16 mm	LED	Clear	Round			AC
NKK Switches YB02KW01-1E05-JE			Quick Connect - 0.110" (2.8mm)		16 mm	0.63 in	16 mm			Round
NKK Switches YB02WKW01-2CF24-JB	White	Green Red	Quick Connect - 0.110" (2.8mm)	24 V 24 V	15 mm	0.63 in	16 mm	LED	Clear	Round	10 mA 10 mA		AC
NKK Switches YB02WKW01-5C24-JC	Red	Red	Quick Connect - 0.110" (2.8mm)	24 V	15 mm	0.63 in	16 mm	LED	Clear	Round	10 mA		AC
NKK Switches YB02KW01-5C12-JC	Red	Red	Quick Connect - 0.110" (2.8mm)	12 V	16 mm	0.63 in	16 mm	LED	Diffused	Round			DC
NKK Switches YB02WKW01-5F24-JB	White	Green	Quick Connect - 0.110" (2.8mm)	24 V	15 mm	0.63 in	16 mm	LED	Diffused	Round	10 mA		AC
NKK Switches YB02KW01-5F-JF	Green	Green	Quick Connect - 0.110" (2.8mm)	2 V	15 mm	0.63 in	16 mm	LED	Clear	Round	40 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 24V 10mA Quick Connect - 0.110" (2.8mm)
