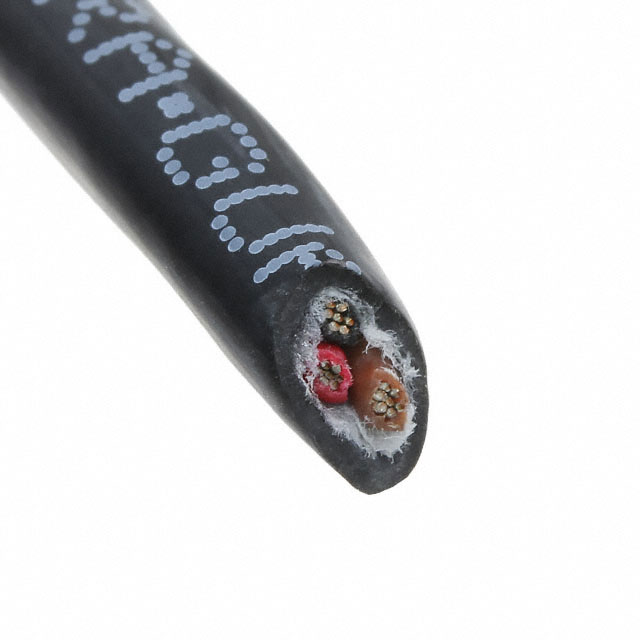

25003 BK005

Active

ALPHA WIRE

CABLE 3COND 22AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25003 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.176 in
Jacket (Insulation) Diameter [diameter]	4.47 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Wire Gauge	Features	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Insulation	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Length	Length	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]
ALPHA WIRE 25003 SL199	-30 ░C	90 °C	Copper Tinned	22 AWG	Biological Compatibility Rip Cord	7	30 AWG	300 V	Poly-Vinyl Chloride (PVC)	Slate	3	Polyurethane (PU)	1000 ft	304.8 m	ISO 10993 UL Style 20668	0.176 in	4.47 mm	Multi-Conductor
ALPHA WIRE 25003 YL199	-30 ░C	90 °C	Copper Tinned	22 AWG	Biological Compatibility Rip Cord	7	30 AWG	300 V	Poly-Vinyl Chloride (PVC)	Yellow	3	Polyurethane (PU)	1000 ft	304.8 m	ISO 10993 UL Style 20668	0.176 in	4.47 mm	Multi-Conductor
ALPHA WIRE 25003 BK005	-30 ░C	90 °C	Copper Tinned	22 AWG	Biological Compatibility Rip Cord	7	30 AWG	300 V	Poly-Vinyl Chloride (PVC)	Black	3	Polyurethane (PU)			ISO 10993 UL Style 20668	0.176 in	4.47 mm	Multi-Conductor	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 22 AWG 100.0' (30.5m)
