AP7348D-1218RS4-7
ActiveDiodes Inc
QUAD 300MA HIGH PSRR LOW NOISE LDO WITH ENABLE
Deep-Dive with AI
Search across all available documentation for this part.
AP7348D-1218RS4-7
ActiveDiodes Inc
QUAD 300MA HIGH PSRR LOW NOISE LDO WITH ENABLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP7348D-1218RS4-7 |
|---|---|
| Control Features | Enable |
| Current - Output | 300 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-XFDFN Exposed Pad |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75 dB |
| Qualification | AEC-Q100 |

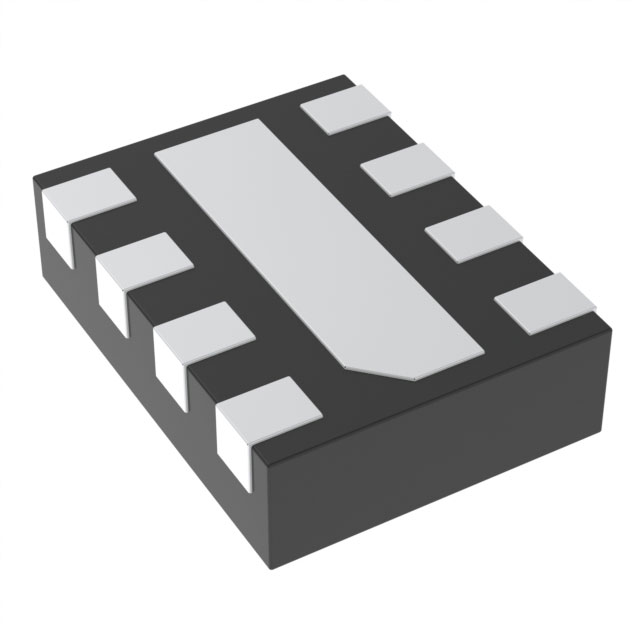

| Supplier Device Package | X1-DFN1612-8 (Type B) |
| Voltage - Input (Max) [Max] | 5.25 V |
| Voltage - Output (Min/Fixed) | 1.8 V, 1.2 V |
| Voltage Dropout (Max) [Max] | 0.48 V, 0.8 V |
AP7348 Series
Quad 300MA High PSRR Low Noise LDO with ENABLE
| Part | Number of Regulators | PSRR | Output Type | Package / Case | Voltage - Output (Min/Fixed) | Qualification | Grade | Protection Features | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Voltage Dropout (Max) [Max] | Supplier Device Package | Current - Output | Control Features | Mounting Type | Utilized IC / Part | Supplied Contents | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Channels per IC | Board Type | Regulator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc | 4 | 75 dB | 1.81 mOhm | 8-XFDFN Exposed Pad | 1.8 V 2.8 V | AEC-Q100 | Automotive | Over Current Over Temperature Short Circuit | 5.25 V | 85 °C | -40 °C | Positive | 0.34 V 0.48 V | X1-DFN1612-8 (Type B) | 300 mA | Enable | Surface Mount | ||||||||
Diodes Inc | 300 mA | AP7348 | Board(s) | 1.7 V | 5.25 V | 1.8 V 2.8 V | 4 | Fully Populated | Positive Fixed | ||||||||||||||||
Diodes Inc | 4 | 75 dB | 1.81 mOhm | 8-XFDFN Exposed Pad | 1.2 V 1.8 V | AEC-Q100 | Automotive | Over Current Over Temperature | 5.25 V | 85 °C | -40 °C | Positive | 0.48 V 0.8 V | X1-DFN1612-8 (Type B) | 300 mA | Enable | Surface Mount | ||||||||
Diodes Inc | 4 | 75 dB | 1.81 mOhm | 8-XFDFN Exposed Pad | 1.8 V 2.5 V | AEC-Q100 | Automotive | Over Current Over Temperature Short Circuit | 5.25 V | 85 °C | -40 °C | Positive | 0.36 V 0.48 V | X1-DFN1612-8 (Type B) | 300 mA | Enable | Surface Mount | ||||||||
Diodes Inc | 4 | 75 dB | 1.81 mOhm | 8-XFDFN Exposed Pad | 1.5 V 1.8 V | AEC-Q100 | Automotive | Over Current Over Temperature Short Circuit | 5.25 V | 85 °C | -40 °C | Positive | 0.48 V 0.53 V | X1-DFN1612-8 (Type B) | 300 mA | Enable | Surface Mount | ||||||||
Diodes Inc | 4 | 75 dB | 1.81 mOhm | 8-XFDFN Exposed Pad | 1.8 V 3.3 V | AEC-Q100 | Automotive | Over Current Over Temperature | 5.25 V | 85 °C | -40 °C | Positive | 0.33 V 0.48 V | X1-DFN1612-8 (Type B) | 300 mA | Enable | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| Tape & Reel (TR) | 5000 | $ 0.14 | ||
Description
General part information
AP7348 Series
The AP7348 is a 4 channel low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process.
