AKA874N0085152A000

Active

TE Intercontec

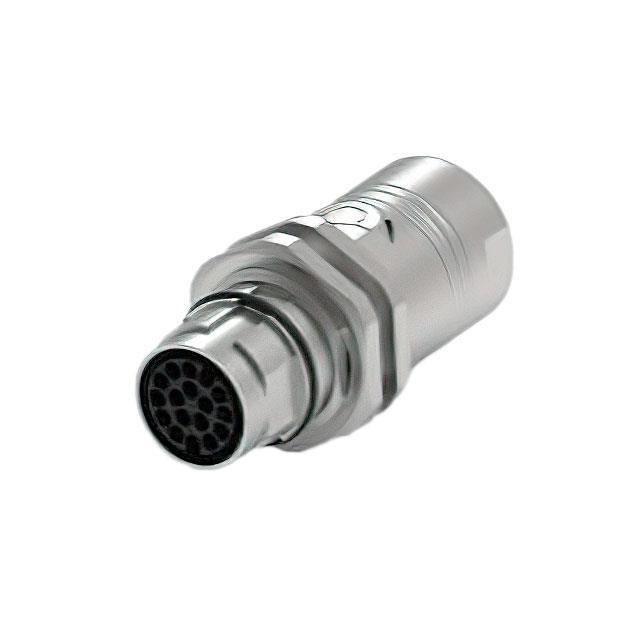

CONN RCP HSG M 17P INLINE PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AKA874N0085152A000

Active

TE Intercontec

CONN RCP HSG M 17P INLINE PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKA874N0085152A000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Cable Clamp, 1 O-Ring, 1 Connector
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M17-17
Shielding	Shielded
Type	For Male Pins

AKA87 Series

Part	Mounting Type	Contact Shape	Housing Color	Shielding	Insert Material	Material Flammability Rating	Shell Size - Insert	Note	Includes	Type	Features	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Fastening Type	Connector Type	Shell Material	Orientation	Mounting Feature
TE Intercontec AKA874N0085151A000	Free Hanging (In-Line)	Circular	Silver	Shielded	Polybutylene Terephthalate (PBT)	UL94 V-0	M17-17	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	For Male Pins	Backshell Cable Clamp	IP66/IP67	-20 C	130 °C	Nickel	Push-Twist	Receptacle Housing	Zinc Die Cast	Keyed
TE Intercontec AKA874N0085051A000	Free Hanging (In-Line)	Circular	Silver	Shielded	Polybutylene Terephthalate (PBT)	UL94 V-0	M17-17	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	For Male Pins	Backshell Cable Clamp	IP66/IP67	-20 C	130 °C	Nickel	Push-Twist	Receptacle Housing	Zinc Die Cast	Keyed
TE Intercontec AKA874N0085152A000	Free Hanging (In-Line) Panel Mount	Circular	Silver	Shielded	Polybutylene Terephthalate (PBT)	UL94 V-0	M17-17	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	For Male Pins	Backshell Cable Clamp	IP66/IP67	-20 C	130 °C	Nickel	Push-Twist	Receptacle Housing	Zinc Die Cast	Keyed	Bulkhead - Front Side Nut
TE Intercontec AKA874N0086151A000	Free Hanging (In-Line)	Circular	Silver	Shielded	Polybutylene Terephthalate (PBT)	UL94 V-0	M17-17	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	For Male Pins	Backshell Cable Clamp	IP66/IP67	-20 C	130 °C	Nickel	Push-Twist	Receptacle Housing	Zinc Die Cast	Keyed
TE Intercontec AKA876N0085152A000	Free Hanging (In-Line) Panel Mount	Circular	Silver	Shielded	Polybutylene Terephthalate (PBT)	UL94 V-0	M17-17	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	For Male Pins	Backshell Cable Clamp	IP66/IP67	-20 C	130 °C	Nickel	Push-Twist	Receptacle Housing	Zinc Die Cast	Keyed	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.23
		10	$ 26.47
		30	$ 25.33
		60	$ 24.51
		120	$ 23.70
		270	$ 22.39

Description

General part information

AKA87 Series

17 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell, Cable Clamp
