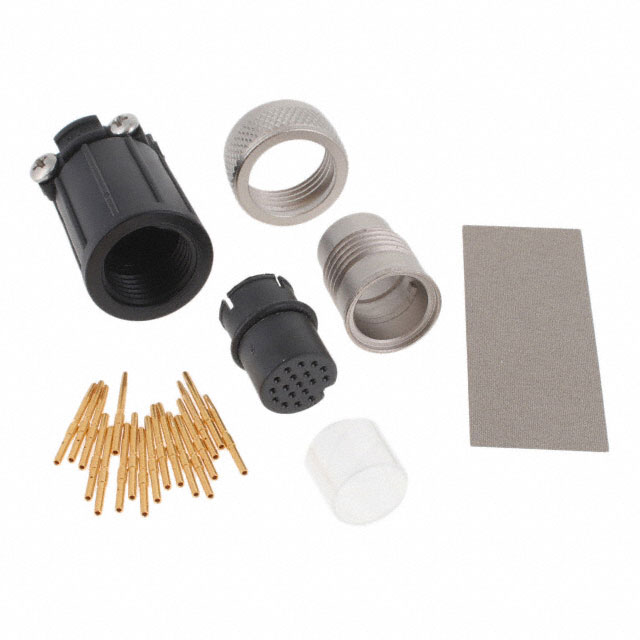

SF6980-18SG-530

Active

Conxall/Switchcraft

CONN PLUG FMALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 18POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	SF6980-18SG-530

Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	0.33 in
Cable Opening [custom]	8.38 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Backshell Material, Plating	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Insert Material	Termination	Mounting Type	Features	Primary Material	Connector Type	Shell Material	Contact Finish - Mating	Shielding	Orientation
Conxall/Switchcraft SF6980-18PG-530	18	-40 °C	120 °C	IP66/IP68	Black Silver	Thermoplastic	Copper Alloy	0.33 in	8.38 mm	Nickel	Thermoplastic	Crimp	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Metal	Male Pins Plug	Copper Alloy	Gold	Shielded	Keyed
Conxall/Switchcraft SF6980-18SG-530	18	-40 °C	120 °C	IP66/IP68	Black Silver	Thermoplastic	Copper Alloy	0.33 in	8.38 mm	Nickel	Thermoplastic	Crimp	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Metal	Female Sockets Plug	Copper Alloy	Gold	Shielded	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Female Sockets Crimp
