DLCBS2-3-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 3/16"

Deep-Dive with AI

Search across all available documentation for this part.

DLCBS2-3-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 3/16"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DLCBS2-3-01

Between Board Height	0.188 "
Between Board Height	4.78 mm
Between Board Height	0.1875 "
Features	Winged
Holding Type	Snap Lock
Length - Overall [x]	21.6 mm
Length - Overall [x]	0.85 "
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.1875 "
Support Hole Diameter [diameter]	4.75 mm
Support Hole Diameter [diameter]	0.187 "
Support Panel Thickness [Max]	1.98 mm
Support Panel Thickness [Max]	0.078 "
Support Panel Thickness [Min]	0.79 mm
Support Panel Thickness [Min]	0.031 in

DLCBS2 Series

Part	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Features	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Mounting Type	Length - Overall [x]	Length - Overall	Between Board Height	Between Board Height	Between Board Height	Holding Type	Material	Length - Overall [x]
Essentra Access Solutions DLCBS2-14-19	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.535 "	39 mm	0.875 in	22.23 mm	0.875 in	Snap Lock	Nylon
Essentra Access Solutions DLCBS2-10-19	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.287 in		15.88 mm	0.625 in	0.625 in	Snap Lock	Nylon	32.7 mm
Essentra Access Solutions DLCBS2-6-19	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.035 in		9.53 mm	0.375 in	0.375 in	Snap Lock	Nylon	26.3 mm
Essentra Access Solutions DLCBS2-9-19	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.224 in		14.3 mm	0.5625 in	0.563 in	Snap Lock	Nylon	31.1 mm
Essentra Access Solutions DLCBS2-14-01	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.535 "	39 mm	0.875 in	22.23 mm	0.875 in	Snap Lock	Nylon
Essentra Access Solutions DLCBS2-8-19	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.161 in		12.7 mm	0.5 in	0.5 in	Snap Lock	Nylon	29.5 mm
Essentra Access Solutions DLCBS2-4-01	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	0.913 in		6.35 mm	0.25 in	0.25 in	Snap Lock	Nylon	23.2 mm
Essentra Access Solutions DLCBS2-9-01	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	1.224 in		14.3 mm	0.5625 in	0.563 in	Snap Lock	Nylon	31.1 mm
Essentra Access Solutions DLCBS2-3-01	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	0.85 "		4.78 mm	0.1875 "	0.188 "	Snap Lock	Nylon	21.6 mm
Essentra Access Solutions DLCBS2-3-19	0.79 mm	1.98 mm	0.031 in	0.078 "	0.187 in	4.75 mm	3 in	0.1875 "	4.75 mm	0.187 "	Winged	1.98 mm	0.79 mm	0.031 in	0.078 "	Snap Lock	0.85 "		4.78 mm	0.1875 "	0.188 "	Snap Lock	Nylon	21.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		5	$ 0.34
		10	$ 0.32
		25	$ 0.29
		50	$ 0.27
		100	$ 0.25
		250	$ 0.23
		500	$ 0.22
		1000	$ 0.21

Description

General part information

DLCBS2 Series

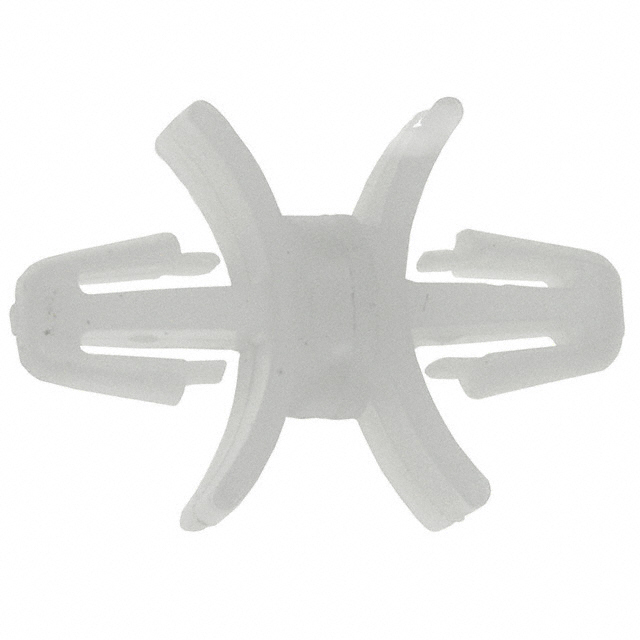

Board Support Snap Lock / Snap Lock Nylon 0.188" (4.78mm) 3/16"
