896-040-559-607

Active

EDAC Inc.

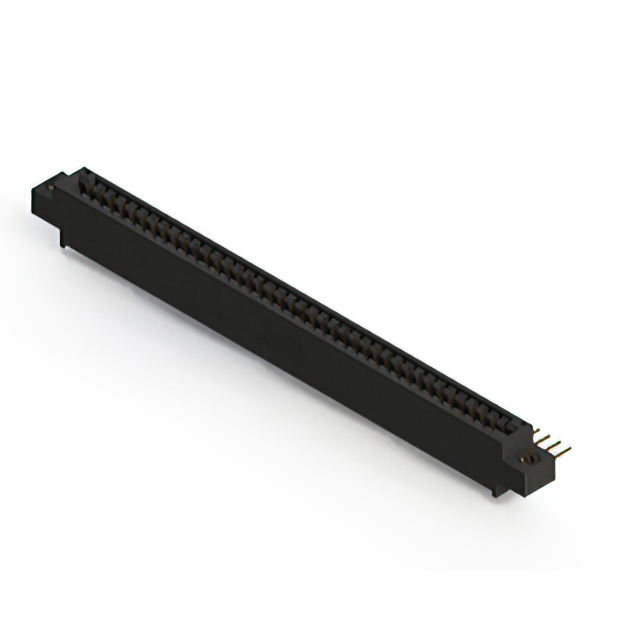

3.18MM RIGHT-ANGLE 40P -40℃~+125℃ PUSH-PULL,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-040-559-607

Active

EDAC Inc.

3.18MM RIGHT-ANGLE 40P -40℃~+125℃ PUSH-PULL,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-040-559-607

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions/Bay/Row [custom]	40
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

896-040 Series

...

Part	Contact Finish	Color	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Card Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Material - Insulation	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Material	Number of Rows	Termination Rows	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]
EDAC Inc. 896-040-555-802	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm	3.25 mm	0.128 in	10 Áin	0.25 Ám	Card Extender	Copper Alloy	2	2	Solder Eyelet(s)
EDAC Inc. 896-040-540-203	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	2	2	Wire Wrap	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 896-040-526-203	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	2	2	Solder	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 896-040-559-204	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	2	2	Solder	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 896-040-526-808	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	2	2	Solder		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-040-555-203	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm			10 Áin	0.25 Ám	Card Extender	Copper Alloy	2	2	Solder Eyelet(s)	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 896-040-559-607	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Non Specified - Single Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Single				0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	1	1	Solder		M3 Threaded Insert Top Mount Opening		40
EDAC Inc. 896-040-540-207	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Dual	20	20	20	0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	2	2	Wire Wrap		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 896-040-540-112	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Single Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Single				0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	1	1	Wire Wrap	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	40
EDAC Inc. 896-040-541-112	Gold	Black	40	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Single Edge	Female	125 °C	-40 °C	Cantilever	Polyphenylene Sulfide (PPS)	Single				0.125 in	3.18 mm			10 Áin	0.25 Ám		Copper Alloy	1	1	Wire Wrap	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 77.61
LCSC	Piece	1	$ 63.78
		200	$ 24.68
		500	$ 23.82
		1000	$ 23.39

Description

General part information

896-040 Series

40 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
