631NH

Active

APEM

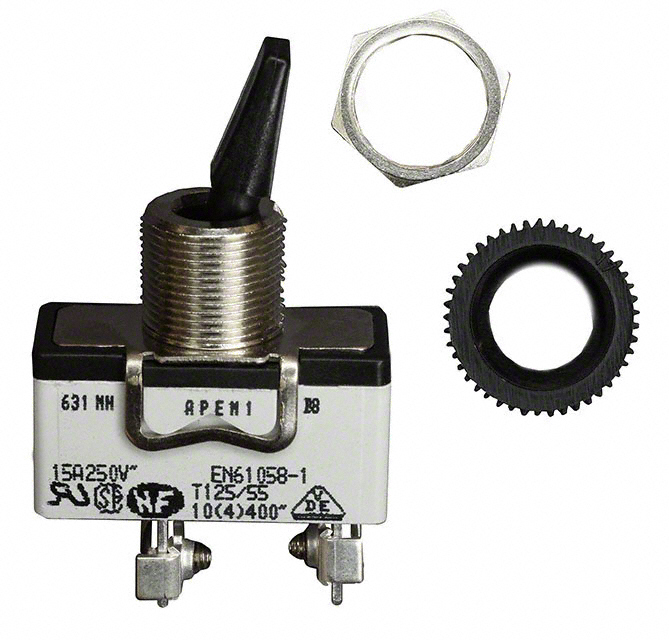

SWITCH TOGGLE SPST 15A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

631NH

Active

APEM

SWITCH TOGGLE SPST 15A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	631NH

Actuator Length [x]	13.5 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	250 V

- Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Differential Travel	Differential Travel	Operating Position	Operating Position	Actuator Type	Pretravel	Pretravel	Circuit	Overtravel	Overtravel	Mechanical Life	Termination Style	Switch Function	Operating Force	Voltage Rating - DC	Bushing Thread	Bushing Thread	Electrical Life	Actuator Length [x]	Features	Illumination	Panel Cutout Dimensions [diameter]	Actuator Material	Operating Position [custom]	Operating Position [custom]
APEM MBE5B3	85 °C	-40 °C	250 V	Chassis Mount	10 A	1.8 mm	0.07 in	12.5 mm	0.492 in	Lever Straight	10 mm	0.394 in	SPST-NC	3 mm	0.118 in	10000000 Cycles	Solder Lug	On-Mom	40 gf
APEM 3631NF	85 °C	-40 °C	125 V		6 A 12 A					Standard Round			SPST				Screw Terminal	On-Off		28 V	M12	0.75	10000 Cycles	17.5 mm	Sealed	Non-Illuminated	12.2 mm	Brass Nickel Plated
APEM 3639NF	85 °C	-40 °C	125 V		6 A 12 A					Standard Round			SPDT				Screw Terminal	On-Off-On		28 V	M12	0.75	10000 Cycles	17.5 mm	Sealed	Non-Illuminated	12.2 mm	Brass Nickel Plated
APEM MBG5B1	85 °C	-40 °C	250 V	Through Hole	10 A	1.2 mm	0.047 in			Lever Straight	5 mm	0.197 in	SPST-NO	1.5 mm	0.06 "	10000000 Cycles	PC Pin	Off-Mom	85 gf										0.437 "	11.1 mm
APEM 658H	55 °C	-20 C	250 V		10 A					Standard Round			3PDT				Screw Terminal	On-Off-Mom			M12	0.75	10000 Cycles	17.5 mm		Non-Illuminated	12.2 mm	Brass Nickel Plated
APEM 3644NF	85 °C	-40 °C	125 V		6 A 12 A					Standard Round			SP3T				Screw Terminal	On-On-On		28 V	M12	0.75	10000 Cycles	17.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	12.2 mm	Brass Nickel Plated
APEM MBJ5E	85 °C	-40 °C	250 V	Through Hole	10 A	0.7 mm	0.028 in	16 mm	0.63 in	Lever Simulated Roller	4.5 mm	0.178 in	SPDT	1.5 mm	0.06 "	10000000 Cycles	PC Pin	On-Mom	115 gf
APEM 631H	55 °C	-20 C	250 V		15 A					Standard Round			SPST				Screw Terminal	On-Off			M12	0.75	10000 Cycles	17.5 mm		Non-Illuminated	12.2 mm	Brass Nickel Plated
APEM 631NH	55 °C	-20 C	250 V		15 A					Flatted			SPST				Screw Terminal	On-Off			M12	0.75	10000 Cycles	13.5 mm		Non-Illuminated	12.2 mm	Nylon Polyamide (PA)
APEM MAA6A	85 °C	-40 °C	250 V	Chassis Mount	16 A	0.4 mm	0.016 "	14.7 mm	0.579 in	Round (Pin Plunger)	1.2 mm	0.047 in	SPST-NO	1.5 mm	0.06 "	10000000 Cycles	Quick Connect - 0.250" (6.3mm)	Off-Mom
