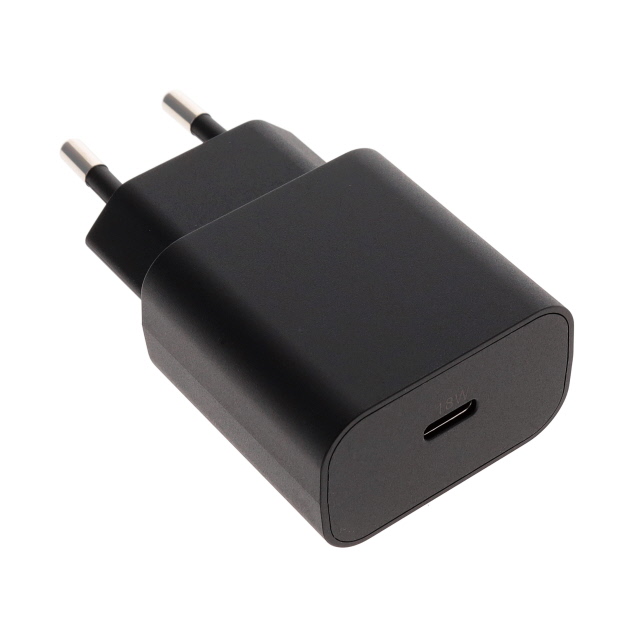

AQ18E-59CFA-H

Active

Phihong USA

AC/DC WALL ADP 5V/9V/12V/15V 18W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL ADP 5V/9V/12V/15V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	AQ18E-59CFA-H

Applications	ITE (Commercial)
Approval Agency	IEC
Current - Output (Max) [Max]	1.2 A, 3 A, 2 A, 1.5 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB C Receptacle
Power (Watts)	18 W
Region Utilized	Europe
Size / Dimension [x]	41 mm
Size / Dimension [x]	1.61 "
Size / Dimension [y]	0.96 in
Size / Dimension [y]	24.3 mm
Size / Dimension [z]	58 mm
Size / Dimension [z]	2.28 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V, 15 VDC, 12 V, 5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Form	Input Type	Input Connector	Approval Agency	Region Utilized	Power (Watts)	Applications	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	No Load Power Consumption [Max]	Efficiency
Phihong USA AQ18E-59CFA-H	40 °C	0 °C	1.2 A 1.5 A 2 A 3 A	Wall Mount (Class II)	Fixed Blade	CEE 7/16	IEC	Europe	18 W	ITE (Commercial)	5 V 9 V 12 V 15 VDC	90 VAC	264 VAC	USB C Receptacle	0.96 in	58 mm	41 mm	1.61 "	2.28 in	24.3 mm	75 mW	CoC Tier 2 Level VI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V, 9V, 12V, 15V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
