430533-502

Active

Laird Thermal Systems, Inc.

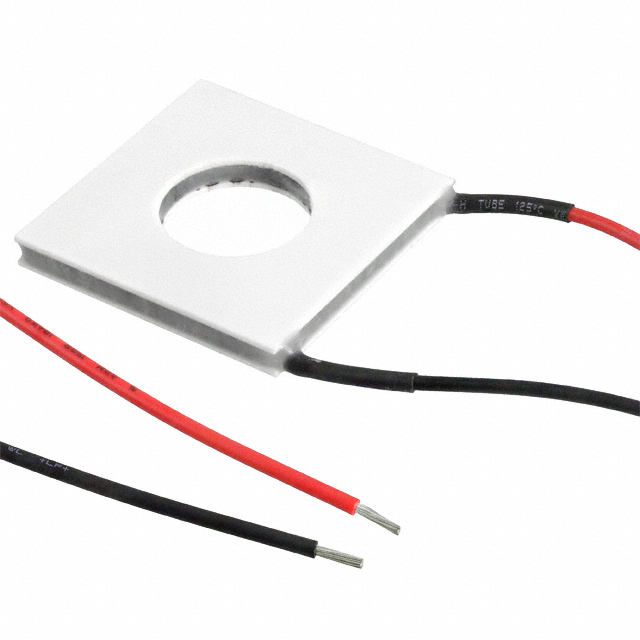

PELTIER SH10,95,06,L,RT,W12

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER SH10,95,06,L,RT,W12

Technical Specifications

Parameters and characteristics for this part

Specification	430533-502

Current - Max [Max]	3 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.58 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	19.7 W
Resistance	3.25 Ohms
Size / Dimension [x]	30 mm
Size / Dimension [y]	30 mm
Voltage - Max [Max]	10.6 V

Part	Delta Tmax @ Th	Number of Stages	Current - Max [Max]	Features	Voltage - Max [Max]	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]	Resistance	Qmax @ Th	Height [z]
Laird Thermal Systems, Inc. 430533-502	67 °C	1	3 A	Lead Wires Sealed - Silicone RTV	10.6 V	80 °C	30 mm	30 mm	3.25 Ohms	19.7 W	3.58 mm
Laird Thermal Systems, Inc. 430533-503		1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 19.7W @ 25°C 3 A 80°C
