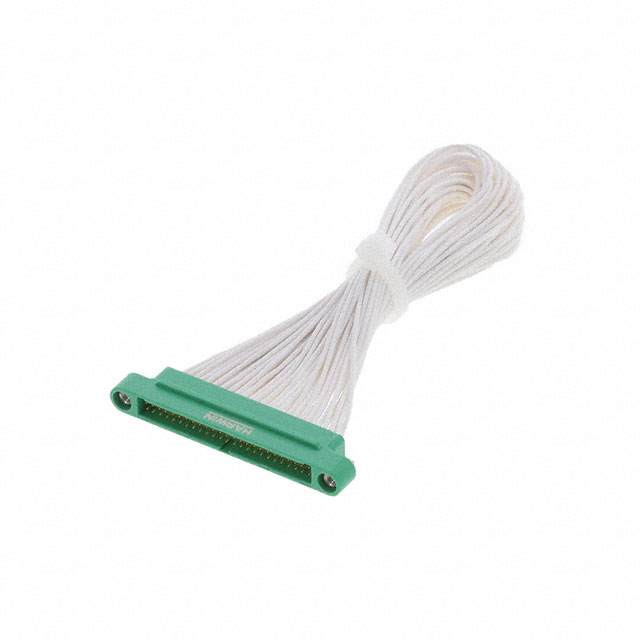

G125-MC15005M1-0150L

Active

Harwin Inc.

25+25 POS. MALE DIL 26AWG CABLE ASSEMBLY, 150MM, SINGLE-END, SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G125-224069600 +2

G125-MC15005M1-0150L

Active

Harwin Inc.

25+25 POS. MALE DIL 26AWG CABLE ASSEMBLY, 150MM, SINGLE-END, SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet G125-224069600 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MC15005M1-0150L

Cable Termination	Crimp
Connector Type	Plug to Individual Wire Leads
Contact Finish	Gold
Features	Screw Lock, Polarizing Key
Length	150 mm
Length	5.91 "
Length	0.492 ft
Number of Positions	50
Number of Rows	2
Pitch - Connector	0.049 in
Pitch - Connector	1.25 mm
Shielding	Unshielded

G125-MC1 Series

Part	Pitch - Connector	Pitch - Connector	Number of Rows	Cable Termination	Features	Length	Length	Length	Connector Type	Number of Positions	Shielding	Contact Finish	Length [x]	Length [x]	Length [x]	Number of Positions
Harwin Inc. G125-MC11005M1-0150F1	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Socket to Plug	10	Unshielded	Gold
Harwin Inc. G125-MC12605M1-0150M1	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Plug	26	Unshielded	Gold
Harwin Inc. G125-MC12005M1-0150L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Individual Wire Leads	20	Unshielded	Gold
Harwin Inc. G125-MC11005M1-0150L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Individual Wire Leads	10	Unshielded	Gold
Harwin Inc. G125-MC15005L4-0150F	0.049 in	1.25 mm	2	Crimp	Latch Holder Latch Lock Polarizing Key	150 mm	5.91 "	0.492 ft	Socket to Plug	50	Unshielded	Gold
Harwin Inc. G125-MC11005M1-0450L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock				Plug to Individual Wire Leads	10	Unshielded	Gold	17.76 in	450 mm
Harwin Inc. G125-MC11605L4-0300M	0.049 in	1.25 mm	2	Crimp	Latch Lock Polarizing Key				Plug to Plug		Unshielded	Gold	0.984 '	300 mm	11.81 "	16
Harwin Inc. G125-MC10605M1-0450L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock				Plug to Individual Wire Leads	6	Unshielded	Gold	17.76 in	450 mm
Harwin Inc. G125-MC15005M1-0150L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Individual Wire Leads	50	Unshielded	Gold
Harwin Inc. G125-MC11605L4-0150M	0.049 in	1.25 mm	2	Crimp	Latch Lock Polarizing Key	150 mm	5.91 "	0.492 ft	Plug to Plug		Unshielded	Gold				16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 106.47
Newark	Each	1	$ 181.62
		100	$ 158.90

Description

General part information

G125-MC1 Series

50 Position Cable Assembly Rectangular Plug to Individual Wire Leads 0.492' (150.00mm, 5.91")

Documents

Technical documentation and resources

Datasheet

G125-224069600

G125-2040696L0

G125 Spec Sheet

Datasheet
